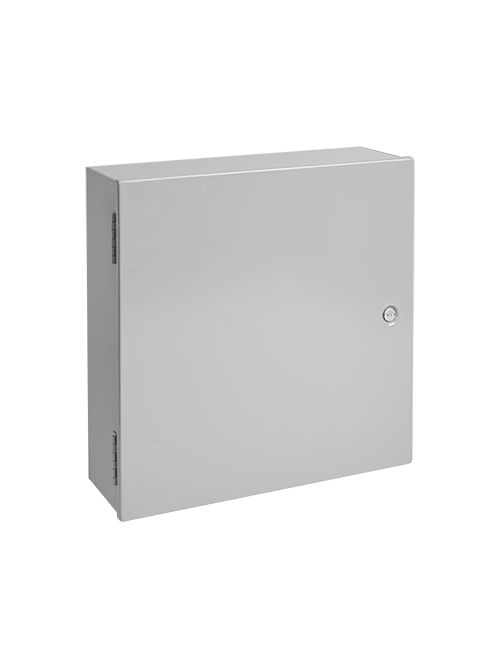

Hoffman A36N30ALP 36 x 30 x 6.62 Inch Gray 12 Gauge Steel NEMA 1 Medium Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$569.84/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A36N30ALP
North Coast Part # 63455

Features

  • Doors have butt hinges
  • Collar studs provided for mounting optional panel
  • Slotted flush latches; optional latches available
  • Mounting holes on back of enclosure
  • 14 or 12 gauge steel

Notes

  • Purchase panels separately.
  • The following Perforated Panels are flanged on four sides: A24N24MPP, A30N20MPP, A30N24MPP, A30N30MPP, A36N24MPP and A36N30MPP.

Accessories

  • T-Handle Latch and Keyed Cylinder Lock Kits
  • Electric Heater
  • Electrical Interlocks
  • Grounding Device
  • Panels for Medium Type 1 Enclosures
  • Rack Mounting Angles - U Style (Type RA)
  • T-Handle Latch and Keyed Cylinder Lock Kits
  • Touch-Up Paint
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A1M
  • Material: Steel
  • Model Code: 86030
  • Ship Wt. Std. Pkg. (lbs): 69.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A36N30ALP
  • A in.: 36
  • B in.: 30
  • C in.: 6.62
  • K in.: 2.00
  • F in.: 6.00
  • G in.: 33.50
  • H in.: 22.75
  • Panel Size D x E in.: 32.00 x 28.50
  • J in.: 3.62
  • Q in.: 1.25
  • P in.: 0.44
  • Panel: A36N30MP
  • Perforated Panel: A36N30MPP
  • Panel Gauge: 12
  • Standards: UL 50, 50E Listed; Type 1; File No. E27567 || cUL Listed per CSA C22.2 No 40; Type 1; File No. E27567 || NEMA/EEMAC Type 1 || CSA, File 42184: Type 1 || IEC 60529, IP30

Overview

UPC 78351086030
GTiN 00783510860301
Finish Painted Steel
Width 30 in
Size 36.00x30.00x6.62 in
Color Gray
Type Type 1 Boxes and Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 6.62 in
Height 36 in
Standard CSA, File 42184: Type 1,CUL Listed Per CSA C22.2 No 40; Type 1; File No. E27567,IEC 60529, IP30,NEMA/EEMAC Type 1,UL 50, 50E Listed; Type 1; File No. E27567
Family Brand Name Hoffman
Sub Brand Hoffman
