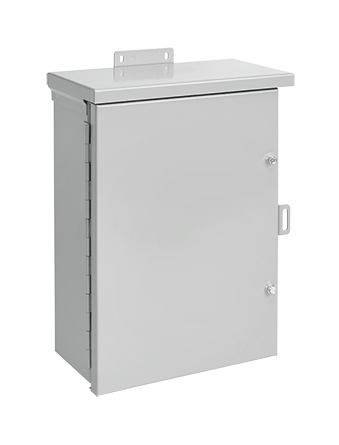

Hoffman A36R3012HCR 36 x 30 x 12 Inch 16/14 Gauge Galvanized Steel NEMA 3R Medium Hinge Cover Enclosure
$1,016.35/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A36R3012HCR
North Coast Part # 13838

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • 16 gauge plated steel continuous hinge has stainless steel pin
  • Cover fastened securely with captive plated steel screws
  • Collar studs provided for mounting optional panels
  • Hasp and staple provided for padlocking
  • No gasketing or knockouts
  • 16 or 14 gauge galvanized steel

Notes

  • Purchase panels separately. Optional aluminum panels are available for most sizes.
  • Purchase perforated panels separately.
  • Flanged on all four sides.

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Rack Mounting Angles - U Style (Type RA)
  • Touch-Up Paint
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A3M
  • Material: Steel
  • Model Code: 42710
  • Ship Wt. Std. Pkg. (lbs): 101.0
  • Interchangeable: False
  • Catalog Number: A36R3012HCR
  • A in.: 36
  • B in.: 30
  • C in.: 12
  • Panel Size D x E in.: 33.00 x 27.00
  • Mounting G x H in.: 37.00 x 27.00
  • Panel: A36P30
  • Perforated Panel: A36P30PP
  • Overall L in.: 38.00
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27567 || cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567 || NEMA/EEMAC Type 3R || IEC 60529, IP32

Overview

UPC 78351042710
GTiN 00783510427108
Finish Polyester Powder Paint
Width 30 in
Size 36.00x30.00x12.00 in
Color ANSI 61 Gray
Type Medium
Material Galvanized Steel
Applications For Applications that Require Protection from Rain, Sleet, Snow or Dripping Water
Depth 12 in
Height 36 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27567,IEC 60529,IP32,NEMA/EEMAC Type 3R,Type 3R,Type 3R File No. E27567,UL 50
Family Brand Name Hoffman
Gauge 16 or 14
Cover Type Hinged
Sub Brand Hoffman
