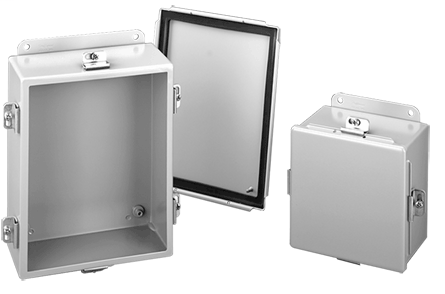

Hoffman A404NF 4 x 4 x 3 Inch 16 Gauge Steel NEMA 4 Clamp Cover Junction Box

Features

• 16 or 14 gauge steeL
• Seams continuously welded and ground smooth
• Stainless steel screw-down clamps on four sides of cover
• Bonding provision on cover
• Oil-resistant gasket
• Weldnuts for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
• External welded-on mounting brackets for easy installation

Notes

• Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Accessories

• Fast-Operating Clamp-Cover Junction Box Clamp
• Panels for Junction Boxes
• Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
• Terminal Block Kit Assembly for Junction Boxes

Specifications

• Bulletin Number: A51NF
• Material: Steel
• Model Code: 55270
• Ship Wt. Std. Pkg. (lbs): 37.8
• Interchangeable: False
• Finish: ANSI 61
• UL Listed: 508A
• Catalog Number: A404NF
• A in.: 4
• B in.: 4
• C in.: 3
• Gauge: 16
• Panel: No Panel
• Conductive Panel: No Panel
• Mounting G x H in.: 4.75 x 2.00
• Overall L x W in.: 5.50 x 5.38
• J in.: 2.62
• K in.: 0.54
• M in.: 1.38
• N in.: 1.38
• T in.: 3.00
• Standards: UL 50, 50E Listed; Type 4, 12, 13; File No. E27525 || cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E27525 || UL 508A Listed; Type 4, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42184: Type 4, 12 || IEC 60529, IP66
