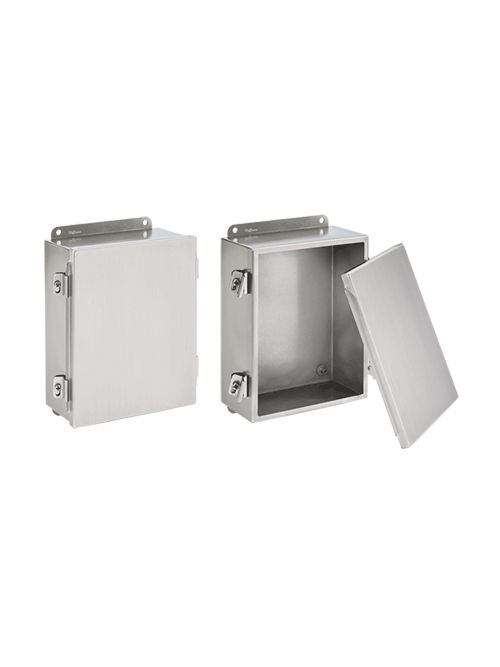

Hoffman A404NFSS 4 x 4 x 3 Inch 16 Gauge 304/316L Stainless Steel NEMA 4X Clamp Cover Junction Box
Product image thumbnail 0
Product image thumbnail 1
$259.88/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A404NFSS
North Coast Part # 66150

Features

  • 16 and 14 gauge Type 304 or 316L stainless steel
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Stainless steel screws and clamps
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
  • Bonding provision on door and body

Notes

  • A404NFSS, A404NFSS6, A6044NFSS and A6044NFSS6 are UL 508A Listed.
  • The remaining catalog numbers are UL 50 Listed.
  • Catalog numbers ending in "6" are Type 316L stainless steel.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
  • Reference the Specification Sheet for Popular Accessories.

Accessories

  • Terminal Block Kit Assembly for Junction Boxes Overview
  • Fast-Operating Clamp-Cover Junction Box Clamp
  • Panels for Junction Boxes
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A51S
  • Model Code: 56900
  • Ship Wt. Std. Pkg. (lbs): 40.32
  • Interchangeable: FALSE
  • UL Listed: 508A
  • Catalog Number: A404NFSS
  • A in.: 4
  • B in.: 4
  • C in.: 3
  • J in.: 2.56
  • M in.: 1.38
  • N in.: 1.38
  • T in.: 3
  • Overall L x W in.: 5.50 x 5.38
  • Steel Panel: No Panel
  • Mounting G x H in.: 4.75 x 2.00
  • Cover Gauge: 16
  • Body Gauge: 16
  • Standards: UL 50 Listed; Type 3R, 4, 4X, 12; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E27525 || UL 508A, 508 Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42184: Type 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351056900
GTiN 00783510569006
Finish Brushed/Grinded
Width 102 mm
Size 4.00x4.00x3.00 in
Color Stainless Steel
Type Two Lock, Single Door
Material Stainless Steel
Applications Used in Either Corrosive or Outdoor Applications
Mounting Type Wall
Depth 76 mm
Height 102 mm
Standard 12,4,4X,508 Listed,CUL Listed Per CSA C22.2 No 94,File No. E27525,File No. E61997,NEMA/EEM,Type 3R,UL 50 Listed,UL 508A
Family Brand Name Hoffman
Gauge 14 and 16
Cover Gauge 16
Body Gauge 16
Cover Type Clamp
Sub Brand Hoffman
