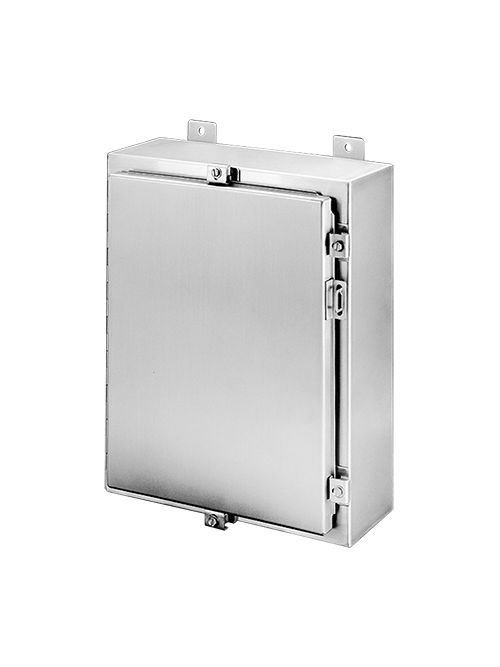

Hoffman A42H3608SSLP 42 x 36 x 8 Inch 14 Gauge 304 Stainless Steel NEMA 4X Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A42H3608SSLP
North Coast Part # 69167


  • 14 gauge Type 304 or Type 316L stainless steel bodies and doors
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assembly
  • Hasp and staple for padlocking
  • Door removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
  • Bonding provision on door; grounding stud on body


  • Purchase panels separately. Optional composite and aluminum panels are available for most sizes.
  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.


  • Fast-Operating Clamp Assembly
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
  • Steel and Stainless Steel Window Kits
  • H2Omitâ„¢ Vent Drains, Type 4X
  • H2Omitâ„¢ Thermoelectric Dehumidifier


  • Bulletin Number: A4S
  • Material: Stainless Steel
  • Model Code: 23890
  • Ship Wt. Std. Pkg. (lbs): 50.0
  • Interchangeable: False
  • Catalog Number: A42H3608SSLP
  • A in.: 42
  • B in.: 36
  • C in.: 8
  • F in.: 3.00
  • Panel Size D x E in.: 39.00 x 33.00
  • Steel Panel: A42P36
  • Stainless Steel Type: 304
  • Data Pocket: Large
  • Conductive Steel Panel: A42P36G
  • Stainless Steel Panel: A42P36SS6
  • Clamps Qty.: 8
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||


UPC 78351023890
GTiN 00783510238902
Finish Powder Coated
Width 36 in
Size 42.00x36.00x8.00 in
Type Single Door, Eight Lock, Gangable
Material 304 or 316L Stainless Steel
Applications For Indoor, Outdoor Corrosive Environments
Mounting Type Wall
Depth 8 in
Height 42 in
Family Brand Name Hoffman
Gauge 14 ga
Cover Type Continuous Hinge with Clamps
Sub Brand Hoffman
