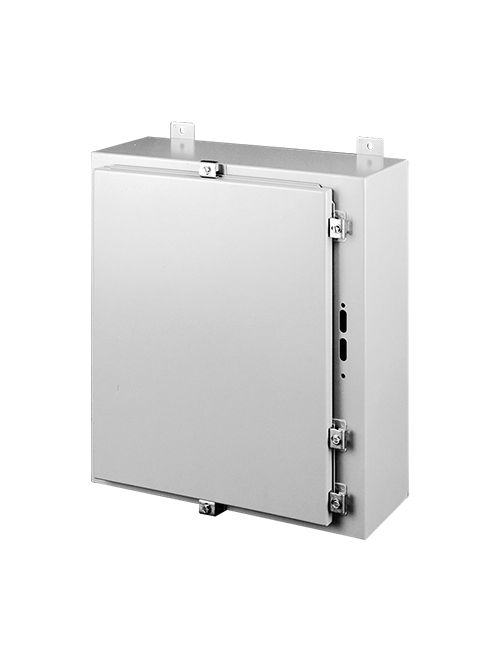

Hoffman A42HS3712LP 42 x 37.38 x 12 Inch 14 Gauge Steel NEMA 4 Wall Mount Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
$1,585.23/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A42HS3712LP
North Coast Part # 681368

Features

  • Seams continuously welded and ground smooth
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Stainless steel door clamps on three sides of door
  • Removable door with continuous hinge
  • Type 4 rated door gasket
  • Collar studs for mounting optional panels
  • Holes in body for mounting disconnect operating handle and operating mechanism
  • Bonding provision on door
  • Bracket welded to door for attaching disconnect door catch (interlock) and instructions for installing disconnects

Specifications

  • Height (H): 1,067 millimetre
  • Finish: Powder Coated
  • Width (W): 949 millimetre
  • Color: Gray
  • Depth (D): 305 millimetre
  • Protection Rating: NEMA Type 4
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Panel Size (D x E): 991 x 838 millimetre
  • Conductive Panel: A42P36G
  • Clamp Quantity: 10
  • Data Pocket Size (D x E): 305 x 305 millimetre
  • Panel: A42P36
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color Code: ANSI 61
  • Thickness (T): 1.9 millimetre

Related Products

Accessory

  • APWK53NF
  • AS050
  • N280416G050
  • LED24V15

Overview

UPC 78351020170
GTiN 00783510201708
Finish Powder Coated
Width 37.38 in
Size 42.00x37.38x12.00 in
Color Gray
Type Disconnect, Wall-Mount
Material Steel
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 12 in
Height 42 in
Standard 12,13,4,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
