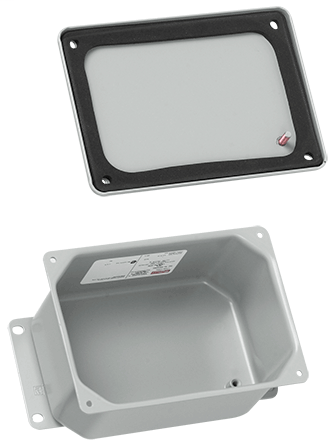

Hoffman A443DSC 3.5 x 4 x 2.75 Inch Gray Steel NEMA 12 Junction Box Screw Cover
$68.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A443DSC
North Coast Part # 160067

Features

  • Drawn 16 gauge steel
  • No welded seams or sharp corners
  • Cover screws
  • Formed flanged cover
  • Oil-resistant gasket
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover
  • Grounding stud on body

Notes

  • Domed-cover enclosure depth = V + 1 in. (25 mm)

Specifications

  • Bulletin Number: A51DR
  • Material: Steel
  • Model Code: 57560
  • Ship Wt. Std. Pkg. (lbs): 11.2
  • Interchangeable: False
  • Finish: ANSI 61
  • Catalog Number: A443DSC
  • A in.: 3.5
  • B in.: 4
  • C in.: 2.75
  • Cover Type: Flat
  • Interior Volume in.: 32.6
  • Mounting G in.: 4.00
  • K in.: 1.50
  • L in.: 4.50
  • M in.: 4.06
  • R in.: n/a
  • S in.: 2.06
  • V in.: 2.98
  • Standards: UL 508A Listed; Type 4, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997 || NEMA Type 4, 6, 12, and 13 || CSA, File No. 42186: Type 4, 12, and 13 || IEC 60529, IP67

Categories

Overview

UPC 78351057560
GTiN 7.83511E+11
Finish ANSI 61
Width 4 in
Size 3.50x4.00x2.75 in
Color Gray
Type Contoured
Material Steel
Applications Controls and Drives
Depth 2.75 in
Height 3.5 in
Standard CSA, File No. 42186: Type 4, 12, And 13,CUL Listed Per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997,IEC 60529, IP67,NEMA Type 4, 6, 12, And 13,UL 508A Listed; Type 4, 6, 12, 13; File No. E61997
Capacity 32.6 cu in
Family Brand Name Hoffman
Cover Type Flat and Dome Screw
Sub Brand Hoffman
