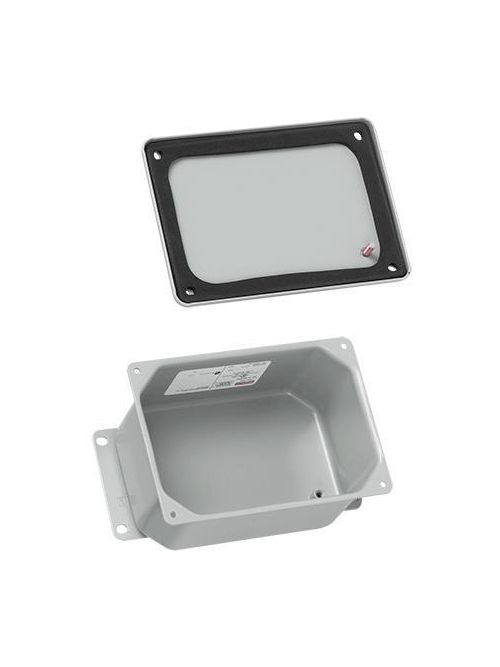

Hoffman A445DSC 3.5 x 4 x 3.75 Inch Drawn Enclosure Box
$85.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A445DSC
North Coast Part # 543475

Features

  • Drawn 16 gauge steel
  • No welded seams or sharp corners
  • Cover screws
  • Formed flanged cover
  • Oil-resistant gasket
  • External welded-on mounting brackets for easy installation
  • Bonding provision on cover
  • Grounding stud on body

Notes

  • Domed-cover enclosure depth = V + 1 in. (25 mm)

Specifications

  • Bulletin Number: A51DR
  • Material: Steel
  • Model Code: 57360
  • Ship Wt. Std. Pkg. (lbs): 6.8
  • Interchangeable: False
  • Finish: ANSI 61
  • Catalog Number: A445DSC
  • A in.: 3.5
  • B in.: 4
  • C in.: 4.75
  • K in.: 1.50
  • L in.: 4.50
  • R in.: 2.53
  • S in.: 2.06
  • M in.: 4.06
  • V in.: 3.98
  • Mounting G in.: 4.00
  • Cover Type: Dome
  • Interior Volume in.: 44.7
  • Standards: UL 508A Listed; Type 4, 6, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997 || NEMA Type 4, 6, 12, and 13 || CSA, File No. 42186: Type 4, 12, and 13 || IEC 60529, IP67

Categories

Overview

UPC 78351057360
GTiN 00783510573607
Finish ANSI 61
Width 4 in
Size 3.50x4.00x3.75 in
Color Gray
Type Contoured,Flat And Dome Cover,Type 4
Material Steel
Applications An economical solution for a broad range of electrical and terminal wiring applications that dont require a back panel, this enclosure features aesthetic, rounded corners and is available in flat and dome cover models for mounting flexibility.
Depth 4.75 in
Height 3.5 in
Standard CUL Listed Per CSA C22.2 No. 94; Type 4, 6, 12, 13; File No. E61997,UL 508A Listed; Type 4, 6, 12, 13; File No. E61997,CSA, File No. 42186: Type 4, 12, And 13,NEMA Type 4, 6, 12, And 13,IEC 60529, IP67
Capacity 44.7 cu in
Family Brand Name Hoffman
Sub Brand Hoffman
