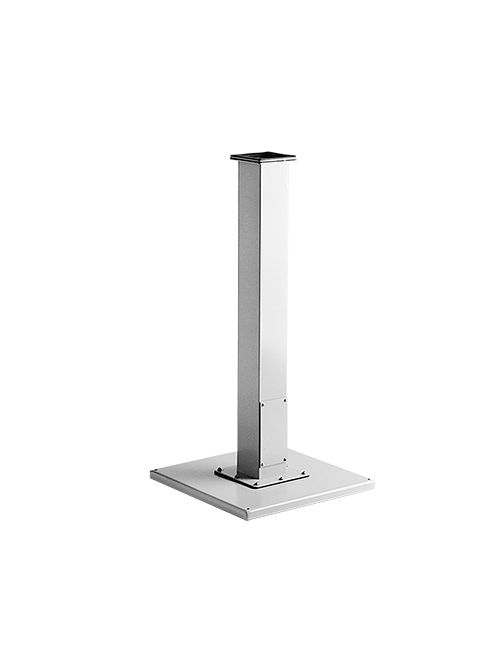

Hoffman A44CCOL 35 x 4 x 4 Inch Straight Gray Polyester Powder Painted Steel Pedestal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$557.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A44CCOL
North Coast Part # 57843

Features

  • Columns can be mounted on either base, through the vertical column or directly to the enclosure
  • A cutout must be made in the enclosure if the wires are to come through the column
  • Columns have flanges at each end and a gasketed access plate
  • Screws, oil-resistant gaskets and box connector fitting are furnished with the column for joining an enclosure to the top
  • Bases have leveling screws and holes for bolting to the floor

Specifications

  • Height (H) (inch): 35
  • Height (H) (millimetre): 889
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Material: Mild Steel
  • Modification Services: Yes
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 35.00x4.00x4.00 in

Overview

UPC 78351057320
Item Long Description Pedestal system enables many types of enclosures and consolets to be floor mounted for optimal viewing and operating height. Various columns and bases are available to customize and configure the desired ergonomic needs. Bases and columns must be ordered separately.
GTiN 00783510573201
Finish Powder Coated
Size 35.00x4.00x4.00 in
Color Gray
Type Pedestals
Material Steel
Applications Controls and Drives
Height 35 in
Standard 13,CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Blade Dimensions 4 in L x 4 in W
Sub Brand Hoffman
Thickness 1.9 mm
Width 4 in
Depth 102 mm
