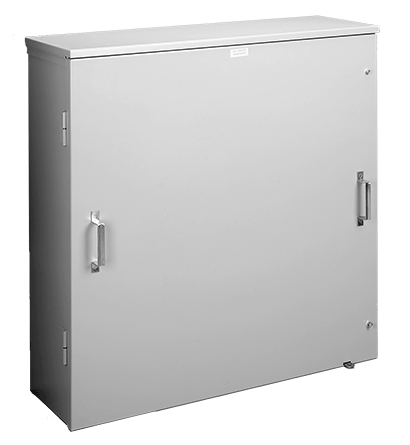

HOFF-E A482411HCT CT Enclosure, Hin
$1,004.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A482411HCT
North Coast Part # 154448

Features

  • Dripshield top and seam-free sides, front and back
  • Mounting holes on back of enclosure
  • Mounting studs are provided on the enclosure body
  • Cover is removable in the open position
  • Door handles provided
  • Provisions for padlocking
  • No gasketing or knockouts
  • Ground lug
  • Mounting provisions for optional door stop
  • 14 or 12 gauge galvanized steel

Notes

  • A484814HCT is a double-door cabinet.

Accessories

  • Industrial Corrosion Inhibitors
  • Grounding Device
  • Touch-Up Paint
  • Large Enclosure Door Stop Kit

Specifications

  • Bulletin Number: A90CT
  • Material: Steel
  • Model Code: 42709
  • Ship Wt. Std. Pkg. (lbs): 112.0
  • Interchangeable: False
  • Catalog Number: A482411HCT
  • A in.: 48
  • B in.: 24
  • C in.: 11
  • D in.: 24.75
  • E in.: 21.00
  • F in.: 8.00
  • G in.: 8.00
  • Gauge: 14
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525 || NEMA Type 3R || IEC 60529, IP32

Overview

UPC 78351042709
GTiN 00783510427092
Width 21.00 in
Size 48.00x24.00x11.00 in
Type Current Transformer, Hinged Cover, Type 3R
Material Steel
Applications Current Transformer Cabinets provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies.
Depth 11 in
Height 48 in
Standard CUL Listed Per CSA C22.2 No 94,File No. E27525,Type 3R,NEMA Type 3R,IP32,50E Listed,UL 50,IEC 60529
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
