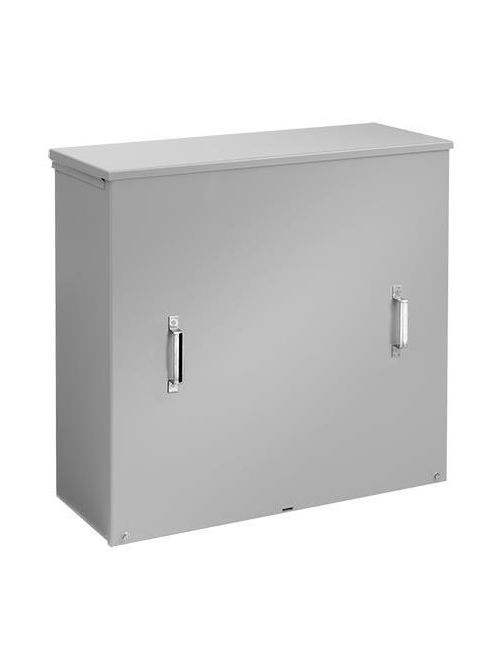

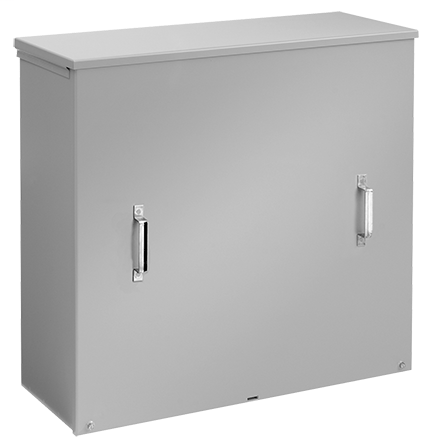

Hoffman A484814CTCJ 46.81 x 48 x 14 Inch Steel NEMA 3R Screw Cover Current Transformer Cabinet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$785.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A484814CTCJ
North Coast Part # 551437

Features

  • Cover with handles and captivated screws
  • 12-gauge plated mounting panel
  • Panel studs allow for either vertical or horizontal panel mounting
  • Enclosures are finished with paint over plated surfaces

Specifications

  • Height (H) (inch): 48
  • Height (H) (millimetre): 1,219
  • Width (W) (inch): 48
  • Width (W) (millimetre): 1,219
  • Depth (D) (inch): 14
  • Depth (D) (millimetre): 356
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • CT Panel (D x E) (inch): 45.73 x 7.25
  • CT Panel (D x E) (millimetre): 1162 x 184
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: 48.00x48.00x14.00 in

Related Products

Accessory

  • AS050
  • APWK53NF

Categories

Overview

UPC 78351014514
Item Long Description CT Cabinet, Screw-Cover with Steel Foot-Mount Panel, Type 3R offers the flexibility of mounting instrument current transformer vertically or horizontally, and are available in a variety of sizes, models to fit a wide range of outdoor applications.
GTiN 00783510145149
Finish Galvanized
Width 48 in
Size 48.00x48.00x14.00 in
Type Current Transformer Cabinets and Terminal Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 356 mm
Height 48 in
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 2.66 mm
