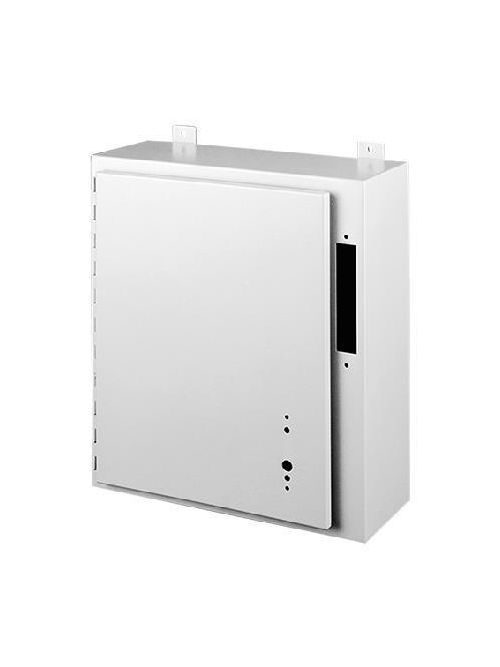

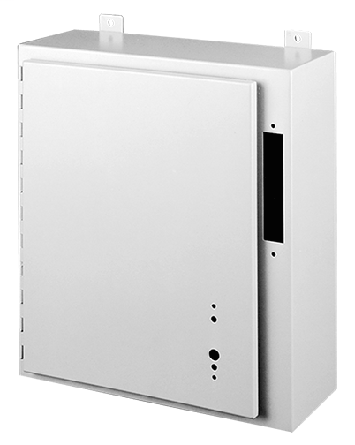

Hoffman A48AB3812LP 48 x 37.38 x 12 Inch 14 Gauge Steel NEMA 12 Wall Mount Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,556.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A48AB3812LP
North Coast Part # 757791

Features

  • Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
  • Type 12 rated door gasket
  • Seams continuously welded and ground smooth
  • Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
  • Collar studs provided for mounting optional panels
  • Removable door with continuous hinge
  • External mounting brackets
  • Data pocket is high impact thermoplastic
  • External-formed flange around all sides of enclosure opening
  • Guide bracket(s) and door catch welded to door

Specifications

  • Finish: Powder Coated
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel Size (D x E) (inch): 45.00 x 33.00
  • Panel Size (D x E) (millimetre): 1143 x 838
  • Conductive Panel: A48P36G
  • Data Pocket Size (D x E) (inch): 12.00 x 12.00
  • Data Pocket Size (D x E) (millimetre): 305 x 305
  • Panel: A48P36
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 48.00x37.38x12.00 in

Related Products

Accessory

  • APWK53NF
  • LED24V15
  • AS050
  • N280416G050

Overview

UPC 78351032740
Item Long Description These enclosures house Allen-Bradley Bulletin 1494F flange-mount disconnect switches and Bulletin 1494D flange-mount operators for circuit breakers.
GTiN 00783510327408
Finish Powder Coated
Width 37.38 in
Size 48.00x37.38x12.00 in
Type Disconnect, Wall-Mount
Material Steel
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 12 in
Height 48 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 mm
