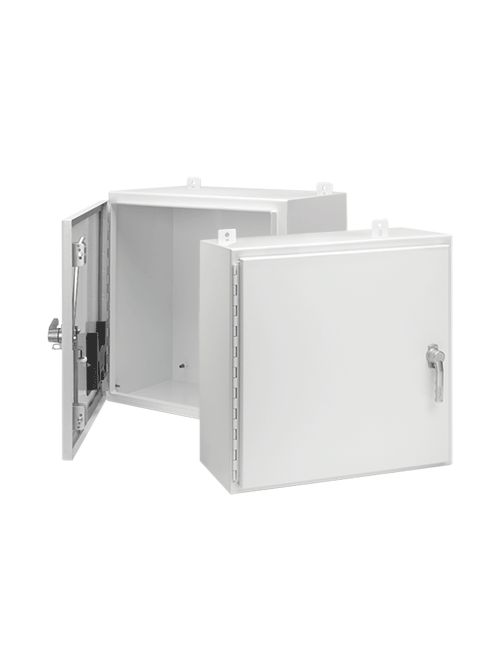

NVENT HOF A48H3616SSLP3PTW WALL MT,
Product image thumbnail 0
Product image thumbnail 1
$6,341.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A48H3616SSLP3PTW
North Coast Part # 682753

Features

  • 14 gauge Type 304 stainless steel bodies and doors
  • Seams continuously welded and ground smooth
  • Type 4-rated gasket
  • 90-degree external formed flange on top of body opening
  • Type 316L stainless steel padlocking PowerGlide Handle and 3-point latching
  • Door removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
  • Panels have a formed flange along any side longer than 21.00 in. (533 mm). Panel A24P20 has a flange on all four sides.

Accessories

  • Panelite Enclosure Lights Overview
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
  • Steel and Stainless Steel Window Kits
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier

Specifications

  • Bulletin Number: A4SW3
  • Material: Stainless Steel
  • Model Code: 17121
  • Ship Wt. Std. Pkg. (lbs): 110.0
  • Interchangeable: False
  • Catalog Number: A48H3616SSLP3PTW
  • A in.: 48
  • B in.: 36
  • C in.: 16
  • F in.: 3.00
  • Panel Size D x E in.: 45.00 x 33.00
  • Conductive Panel: A48P36G
  • Steel Panel: A48P36
  • Data Pocket: Large
  • Stainless Steel Panel: A48P36SS6
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351017121
GTiN 00783510171216
Width 36 in
Size 48.00x36.00x16.00 in
Color White
Type Single Door
Material 304 Stainless Steel
Applications For Housing Electrical Components and Controls in Outdoor or Corrosive Environments
Depth 16 in
Height 48 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Polyester Powder Painted
Mounting Type Wall
Gauge 14
Cover Type Continuous Hinge
