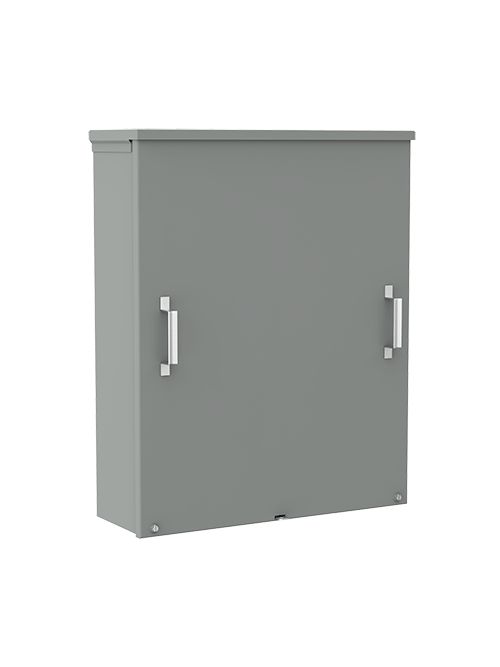

NVENT HOF A48R368 Type 3R Enclosure
Product image thumbnail 0
Product image thumbnail 1
$613.53/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A48R368
North Coast Part # 335607

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Handles on larger sizes (see table)
  • Embossed mounting holes on back of enclosure
  • Knockouts in bottom of 16 and 14 gauge enclosures
  • Provision for padlocking
  • No gasketing
  • Enclosures are finished with paint over plated surfaces

Specifications

  • Height (H): 1,219 millimetre
  • Width (W): 914 millimetre
  • Depth (D): 203 millimetre
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • Knockouts Included: Yes
  • NEMA Rating: 3R Weather-resistant, except dust
  • Mounting (H): 838 millimetre
  • Knockout Pattern: A-B-C-D-E-F-G-H-I
  • Body Style: C
  • Mounting (J): 38 millimetre
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Body Thickness: 2.66 millimetre
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness: 2.66 millimetre
  • Finish: Galvanized

Related Products

Accessory

  • AGS816
  • AGLK2
  • AGS408
  • AGS416
  • AGS808
  • ATPPY61

Overview

UPC 78351049259
GTiN 00783510492595
Finish Galvanized
Width 36 in
Size 48.00x36.00x8.00 in
Type Screw-Cover,Type 3R
Material Steel
Applications Power Distribution
Depth 8 in
Height 24.19 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27525
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
