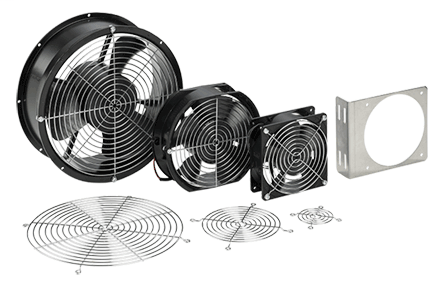

Hoffman A4AXFNGQ 4 Inch 0.09 Amp 115 VAC 6 W Black Compact Axial Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$159.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A4AXFNGQ
North Coast Part # 424825

Features

  • Maximum operating temperature is 158 F (70 C)
  • 4-inch fan is thermally protected and uses permanently lubricated ball bearings
  • 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
  • Split-capacitor motors are thermally protected to avoid premature failure
  • Dynamically balanced impellers molded from polycarbonate material
  • One finger guard is furnished (additional finger guards are available)
  • All mounting hardware is provided
  • 240 and 560 CFM fans have ball bearing construction and split capacitor motors
  • Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
  • Fan bracket and additional finger guards must be purchased separately

Specifications

  • Height (H) (inch): 4.62
  • Height (H) (millimetre): 117.348
  • Width (W) (inch): 4.62
  • Width (W) (millimetre): 117.348
  • Depth (D) (inch): 1.74
  • Depth (D) (millimetre): 44.196
  • Airflow (cubic foot per minute): 49
  • Airflow (cubic metre per hour): 83
  • Nominal Voltage (volt): 115
  • Voltage AC (volt): 100-120.00
  • Max Current (ampere): 0.09
  • Material: Mild Steel
  • Fan Diameter (inch): 4.69
  • Finish: Powder Coated
  • Color: Jet Black
  • Color Code: RAL 9005
  • Size: 115v 50/60Hz in
  • Flow Rate: 46/49 CFM max
  • Voltage Rating: 100 - 120 VAC
  • Amperage Rating: .09/.08 A
  • Motor Type: AC Motor

Overview

UPC 78351013852
Item Long Description Compact Cooling Fans are ideal for applications where enclosure space is limited and quiet, reliable cooling is required. Engineered for 50,000 hours of continuous operation without lubrication or service.
GTiN 00783510138523
Size 115v 50/60Hz in
Voltage 120 Volt
Type Compact
Applications For Applications Where Enclosure Space is Limited and Quiet, Reliable Cooling is Required
Standard CSA,UL Component Recognized
Family Brand Name Hoffman
Max Current .09/.08 A
Airflow Rate 46/49
Motor Type AC
Sub Brand Hoffman
Housing Material Polycarbonate
Power Rating 6/5 W
Blade Size 4 in
Finish Powder Coated
Color Black
Width 4.62 in
Depth 44.196 mm
Height 4.62 in
