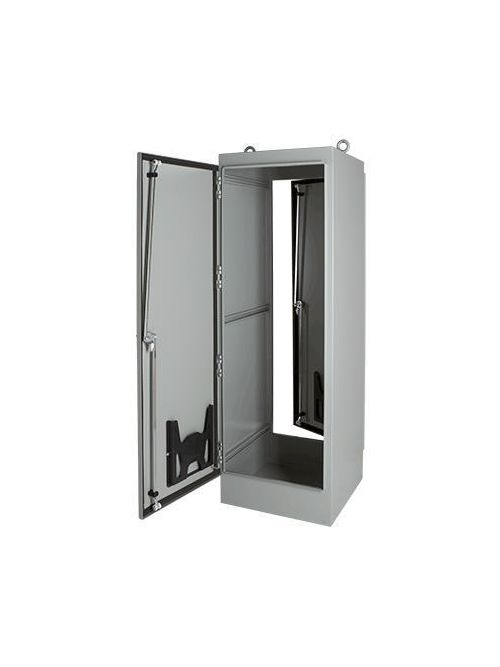

Hoffman A603624FS 60.06 x 36.06 x 24.06 Inch White 12 Gauge Steel NEMA 12 1-Door Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A603624FS
North Coast Part # 599447


  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oil-tight key-locking handle
  • Concealed, easy-to-remove hinges
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door


  • Height (H): 1,526 millimetre
  • Width (W): 916 millimetre
  • Depth (D): 611 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Unit Quantity: 28
  • Lifting Eye Quantity: 2
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 2.66 millimetre

Related Products


  • G280416G050
  • ASMP58SS
  • A72RP24F5
  • ASMP34SS
  • ASMP12SS
  • LED24V15
  • AEK115
  • AL2A
  • APWK2315NF
  • AL3A
  • AL2DR
  • AL3DR
  • A60P36F1G
  • A60P36F2G
  • A60P36F2
  • A60P36F1
  • A60SMP14
  • A72P36F2
  • A60SMP14G
  • A90P36F2
  • ADK36HH
  • A72P36F2G
  • A90P36F2G


UPC 78351025020
GTiN 00783510250201
Finish Powder Coated
Width 36.06 in
Size 60.06x36.06x24.06 in
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 24.06 in
Height 60.06 in
Standard CSA,CUL Listed Per CSA C22.2 No. 94,E.I.A. RS310D,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 2.66 Millimetre mm
