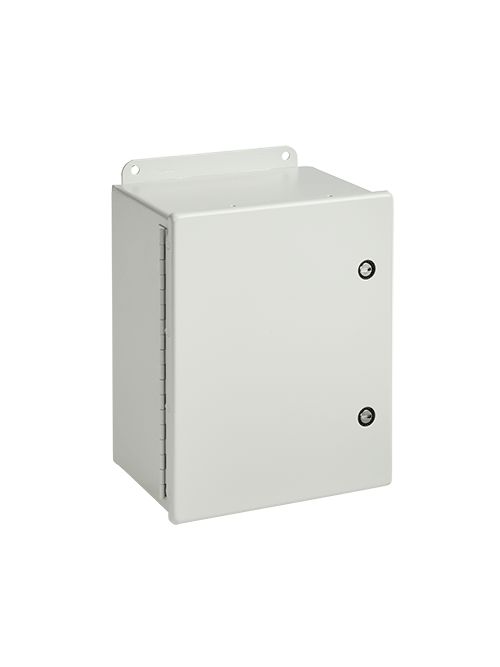

Hoffman A6044CHFL 6 x 4 x 4 Inch Gray 16 Gauge Steel NEMA 4 Junction Box with Fast Latch
Product image thumbnail 0
Product image thumbnail 1
$136.62/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A6044CHFL
North Coast Part # 494502

Features

  • 16 or 14 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bnding provision on door
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Quarter-turn slotted latches
  • Seamless foam-in-place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Notes

  • Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Accessories

  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A51FL
  • Material: Painted Steel
  • Model Code: 14874
  • Ship Wt. Std. Pkg. (lbs): 22.72
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: A6044CHFL
  • A in.: 6
  • B in.: 4
  • C in.: 4
  • K in.: 0.54
  • F in.: 3.53
  • Gauge: 16
  • Panel Size in.: 4.88 x 2.88
  • J in.: 3.62
  • Conductive Panel: A6P4G
  • V in.: 0.31
  • T in.: 3.00
  • Overall L x W in.: 7.50 x 4.41
  • Mounting G x H in.: 6.75 x 2.00
  • Y in.: 0.56
  • Panel: A6P4
  • No. of latches: 1
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94 Listed; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4 and 12 || IEC 60529, IP 66

Overview

UPC 78351014874
GTiN 00783510148744
Finish Powder Coated
Width 102 mm
Size 6.00x4.00x4.00 in
Color 7035 Light Gray
Type Single Lock, Single Door
Material Steel
Applications Controls and Drives
Mounting Type Wall
Depth 102 mm
Height 152 mm
Standard CUL Listed Per CSA C22.2 No. 94 Listed; Type 4, 12; File No. E61997,IEC 60529, IP 66,NEMA/EEMAC Type 4 And 12,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Gauge 14 and 16
Number of Latches 1
Cover Type Continuous Hinged with Quarter-Turn Fast Latch
Sub Brand Hoffman
