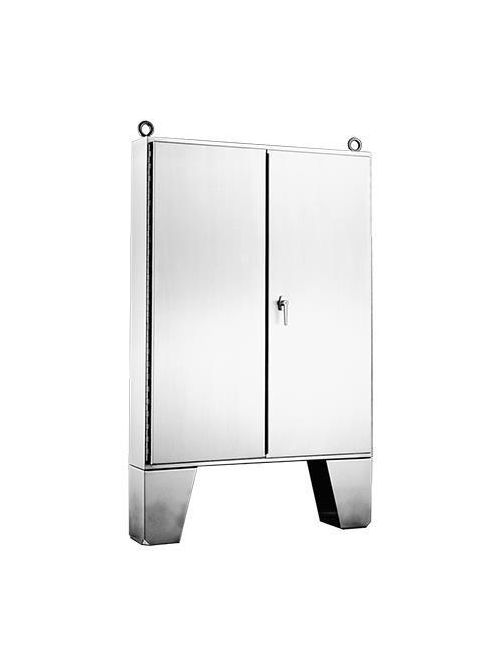

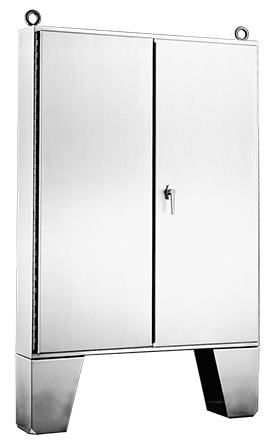

Hoffman A604820SSLP 60.06 x 48.06 x 20.06 Inch 12 Gauge 304 Stainless Steel NEMA 12 2-Door Floor Mount Enclosure
$11,080.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A604820SSLP
North Coast Part # 682798

Features

  • Manufactured from 12 or 14 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Strong, rigid construction with body stiffeners
  • Gasketed overlapping doors eliminate need for centerpost
  • Plated steel 3-point latching mechanism and key-locking handle
  • Heavy-gauge continuous hinges support each door
  • Data pocket, provided on door with 3-point latches, is high-impact thermoplastic
  • 12-in. (305-mm) floor stands are welded to enclosure
  • Heavy-duty lifting eyes are Type 316 stainless steel
  • Panel supports
  • Collar studs for mounting optional panel
  • Bonding provision on doors; grounding studs on body
  • Accessory mounting channel in top of enclosure

Notes

  • Purchase panels separately.
  • Includes frame, door(s), two sides and four lifting eyes.

Accessories

  • Drip Shield Kit for Type 12 Enclosure
  • Enclosure Stabilizers
  • Center Panel Supports
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Specifications

  • Bulletin Number: A12S
  • Model Code: 84220
  • Ship Wt. Std. Pkg. (lbs): 395.0
  • Interchangeable: False
  • Catalog Number: A604820SSLP
  • A in.: 60.06
  • B in.: 48.06
  • C in.: 20.06
  • Panel Size D x E in.: 56.00 x 44.00
  • Gauge: 12
  • Panel: A60P48
  • Stiffener Body: 1 (X-form)
  • Galvanized Panel: A60P48G
  • Panel Gauge: 11
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55

Overview

UPC 78351084220
GTiN 00783510842208
Width 48.06 in
Size 60.06x48.06x20.06 in
Type Two-Door with 3-Point Latches and Floor-Stands, Type 12
Material STAINLESS STEEL
Applications Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water.
Depth 20.06 in
Height 60.06 in
Standard CSA File No. 42186: Type 12,IEC 60529, IP55,UL 508A Listed; Type 12; File No. E61997,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,NEMA/EEMAC Type 12
Family Brand Name Hoffman
Gauge 12 AWG
Sub Brand Hoffman
