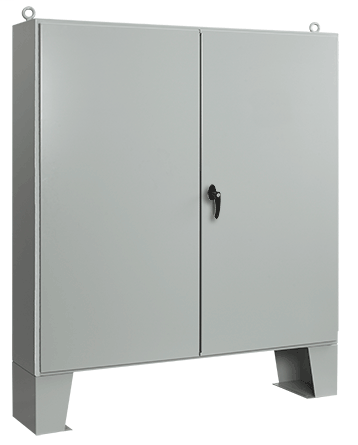

NVENT HOF A606024LPG TYPE 12 ENCL 6

Features

• Seams continuously welded and ground smooth; no holes or knockouts
• 3-point latch mechanism operated by oil-tight key-lock handle
• Gasketed overlapping doors with no centerpost
• Concealed, easy-to-remove hinges
• Data pocket is high-impact thermoplastic
• 12-in. floor stands welded to enclosure
• Heavy-duty lifting eyes
• Panel supports
• Oil-resistant gasket
• Collar studs for mounting optional panel
• Bonding provision on door
• Provision for mounting fluorescent light

Notes

• Purchase panels separately.
• Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Accessories

• Blower Fan Package
• Drip Shield Kit for Type 12 Enclosures
• InterSafe Data Interface Ports, Type 4/4X/12
• Panelite Enclosure Lights
• Hole Seals
• Window Kits

Specifications

• Bulletin Number: A12L
• Material: Steel
• Model Code: 38409
• Ship Wt. Std. Pkg. (lbs): 555.0
• Interchangeable: False
• Catalog Number: A606024LPG
• A in.: 60.06
• B in.: 60.06
• C in.: 24.06
• S in.: 19.92
• Gauge: 12
• Panel Size in.: 56.00 x 56.00
• Conductive Panel: A60P60G
• Panel: A60P60
• Interior Finish: Gray
• Stiffener in.: 21.00
• Panel Gauge: 11
• Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55
