Hoffman A606CHFTC 6 x 6 x 4.54 Inch 16 Gauge Steel NEMA 12 Hinge Cover Junction Box
$121.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A606CHFTC
North Coast Part # 545107

Features

  • 16 gauge body, 16 or 14 gauge door

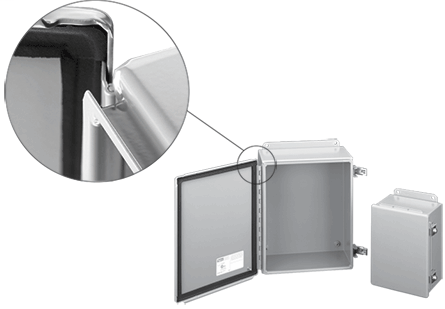

  • External formed body flange channels away liquids
  • Continuous hinge
  • Bonding provision on door
  • Heavy-duty, tool-to-open, plated latches
  • Oil-resistant gasket
  • External wall-mounting brackets
  • Weldnuts provided for mounting optional panels and terminal block kits
  • Seams continuously welded and ground smooth

Notes

  • Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Accessories

  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A51
  • Material: Steel
  • Model Code: 74380
  • Ship Wt. Std. Pkg. (lbs): 31.12
  • Interchangeable: False
  • Finish: ANSI 61
  • UL Listed: 50, 50E
  • Catalog Number: A606CHFTC
  • A in.: 6
  • B in.: 6
  • C in.: 4.75
  • K in.: 0.54
  • F in.: 4.10
  • Panel Size D x E in.: 4.88 x 4.88
  • J in.: 4.21
  • Conductive Panel: A6P6G
  • V in.: 0.31
  • T in.: 5.00
  • Overall L x W in.: 7.50 x 6.88
  • Mounting G x H in.: 6.75 x 4.00
  • Y in.: 0.56
  • Panel: A6P6
  • Standards: UL 50, 50E Listed; Type 12, 13; File No. E27567 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27567 || UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA, File No. 42184, Type 12, 13 || IEC 60529, IP65

Categories

Overview

UPC 78351074380
GTiN 00783510743802
Length 6 in
Finish Polyester Powder Coated
Width 6 in
Size 6.00x6.00x4.54 in
Color ANSI 61 Gray
Type Hinge Cover
Material 16 ga Steel
Applications Use in Automotive and other Applications that Require an Outward Formed External Flange Trough Collar to Keep Out Liquids and Contaminants
Mounting Type Wall
Depth 4-3/4 in
Height 6 in
Standard 13,50E Listed,CSA,CUL Listed Per CSA C22.2 No. 94,File,File No. E27567,File No. E61997,NEMA/EEMAC Type 12,Type 12,UL 50,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
