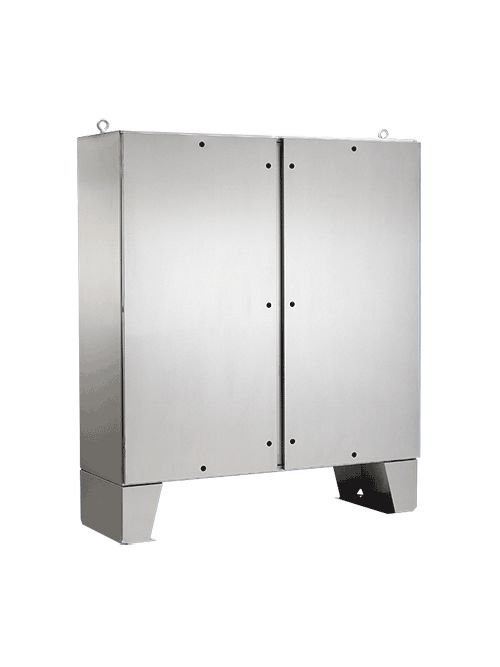

Hoffman A60H6018SSLPQT 60.06 x 60.06 x 18.06 Inch 12 Gauge 304 Stainless Steel NEMA 4X 2-Door Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A60H6018SSLPQT
North Coast Part # 550727


  • 14 gauge doors and 12 gauge body from Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
  • Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on 12-in.-high stainless steel floor stands
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Collar studs on inside of enclosure back for mounting optional panels
  • Removable centerpost for easy panel installation
  • Bonding provisions on doors; grounding studs on body
  • Data pocket is high-impact plastic attached with pressure-sensitive adhesive
  • No interior stiffeners to obstruct component mounting
  • Accessory mounting channel provided in enclosure top


  • Purchase panels separately.


  • Electric Heater
  • Panelite Enclosure Lights Overview
  • Panel Support Kit
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures


  • Bulletin Number: A4S2
  • Model Code: 13718
  • Ship Wt. Std. Pkg. (lbs): 481.0
  • Interchangeable: False
  • Catalog Number: A60H6018SSLPQT
  • A in.: 60.06
  • B in.: 60.06
  • C in.: 18.06
  • Panel Size D x E in.: 56.00 x 56.00
  • Conductive Panel: A60P60G
  • Panel: A60P60
  • Number of Latches: 10
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC: Type 3R, 4, 4X, 12 || Number E61997 || IEC 60529, IP66 ||


UPC 78351013718
GTiN 00783510137182
Width 60.06 in
Size 60.06x60.06x18.06 in
Type Free-Stand, Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 18.06 in
Height 60.06 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC: Type 3R, 4, 4X, 12,Number E61997,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Family Brand Name Hoffman
Number of Latches 10
Sub Brand Hoffman
