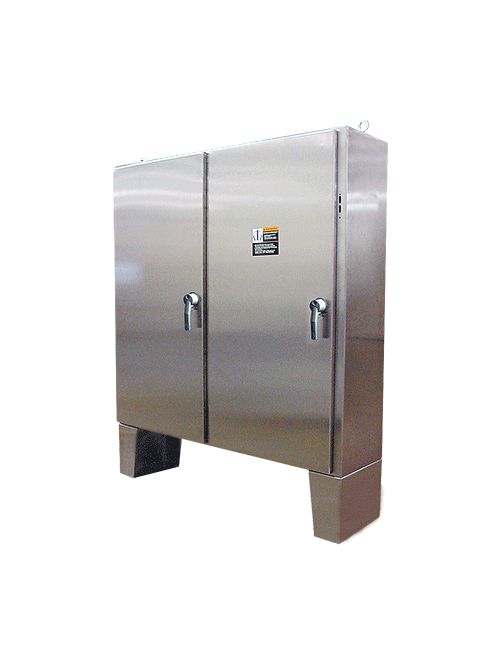

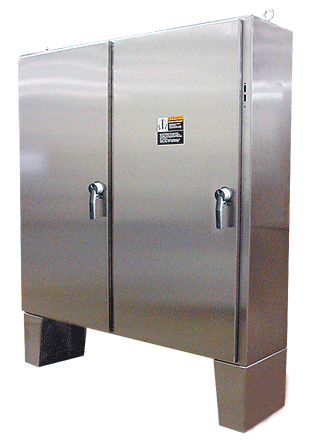

Hoffman A60X6112SSLPN4 60.12 x 61.75 x 12.12 Inch 12 Gauge 304 Stainless Steel NEMA 4X 2-Door Disconnect Enclosure

Features

• Manufactured from 12 gauge Type 304 stainless steel
• Seams continuously welded and ground smooth
• Body stiffeners in larger enclosures for extra rigidity
• Body flange trough collar excludes liquids and contaminants
• Removable centerposts permit easy panel installation
• Heavy-gauge continuous hinges
• Heavy-duty lifting eyes are Type 316 stainless steel
• Data pocket is high-impact thermoplastic
• 15-in. floor stands are welded to enclosure
• Seamless foam-in-place gasket provides oil-tight and dust-tight seal against contaminants
• Panel supports
• Collar studs provided for mounting optional panels
• Heavy-duty 3-point latching mechanism operated by Type 316 stainless steel PowerGlide padlocking handle on all doors
• Masterdoor is right-hand door on X enclosures and left-hand door on CPX enclosures
• Type 316 stainless steel handle with defeater on master door
• Type 316 stainless steel handle (non-defeater) on slave door
• Mechanical interlock operated by master door prevents slave door from being opened first; doors can be closed in any order
• Preferred cutout on right flange provides mounting for most disconnect operators
• Bonding provision on doors; grounding studs on body
• Accessory mounting channel provided in enclosure top

Notes

• Purchase panels separately.
• All 24.12-in. (613 mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Schneider Square D Class 9422 devices (see next paragraph for option)
• The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

Accessories

• Blank Adapter Plates, Mild Steel
• InterSafe Data Interface Ports, Type 4/4X/12
• Operator Adapters for Universal Cutouts
• Panelite Enclosure Lights Overview
• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
• Steel and Stainless Steel Window Kits

Specifications

• Bulletin Number: A21S4
• Model Code: 11098
• Ship Wt. Std. Pkg. (lbs): 461.0
• Interchangeable: False
• Catalog Number: A60X6112SSLPN4
• A in.: 60.12
• B in.: 61.75
• C in.: 12.12
• Description: Provision for Disconnect Operator on Right Flange
• Panel Size D x E in.: 56.00 x 56.00
• Conductive Panel: A60P60G
• Panel: A60P60
• Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||
