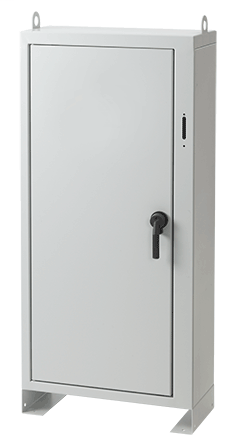

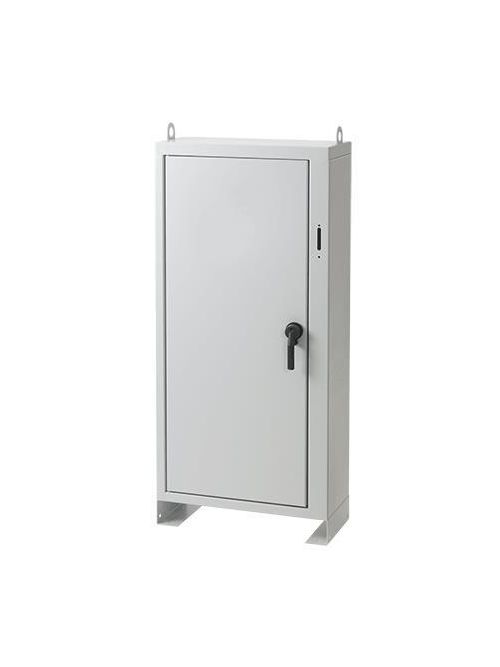

Hoffman A60XN2712FSLP Type 1 Large Free Stand Disconnect Enclosure

Features

• 14 gauge steel body and door; 12 gauge back covers
• 4-in. high 10 gauge steel integral lifting base
• Modified preferred disconnect cutout
• Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
• Sturdy 7 gauge lifting tabs
• Flush doors
• 3-point latch with heavy-duty handle
• Screwdriver defeater in handle on master door
• Padlock provision in handle
• Predrilled holes in lifting base provide bolt-down capability
• Bonding provision on each door
• Studs included for mounting optional panels on threaded bolts
• Optional rack angles mount to top and bottom of front flanges

Notes

• Purchase panels separately.

Accessories

• Rack-Angle Mounted Drawer
• Rack-Mount Steel Shelf
• Rack Mounting Angle Kit - L Style
• Electric Heater
• Compact Cooling Fans

Specifications

• Bulletin Number: A38D
• Material: Steel
• Model Code: 13887
• Ship Wt. Std. Pkg. (lbs): 179.0
• Interchangeable: No
• Finish: Steel/Gray
• Catalog Number: A60XN2712FSLP
• A in.: 60
• B in.: 27
• C in.: 12
• Description: 2-Door Enclosure
• Panel Size D x E in.: 49.16 x 21.50
• Conductive Panel: A49P21NG
• Panel: A49P21N
• Use Rack Angle: ARA6019THG
• Standards: UL508A Listed; Type 1; File No. E61997 || cUL Listed per CSA C22.2 No. 14; Type 1; File No. E61997 || NEMA/EEMAC Type 1 || IEC 60529 IP30Catalog weights & dimensions are careful estimates but not guaranteed.
