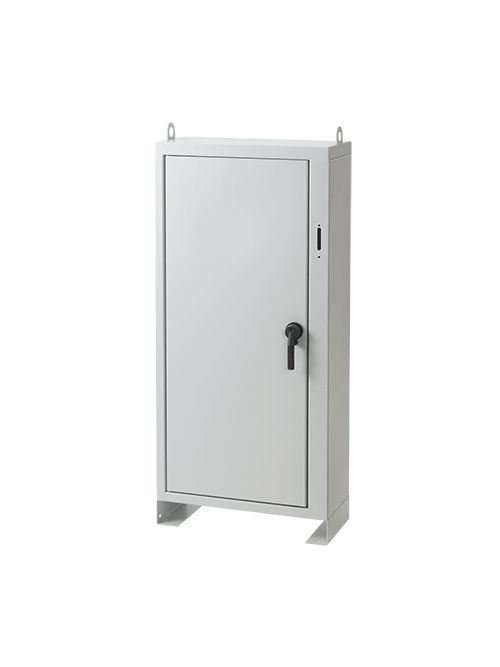

NVENT HOF A60XN5312FSLP Typ1 Lrg F
Product image thumbnail 0
Product image thumbnail 1
$2,215.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A60XN5312FSLP
North Coast Part # 671913

Features

  • 4-in. high 10 gauge steel integral lifting base
  • Modified preferred disconnect cutout
  • Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
  • Sturdy 7 gauge lifting tabs
  • Flush doors
  • 3-point latch with heavy-duty handle
  • Screwdriver defeater in handle on master door
  • Padlock provision in handle
  • Predrilled holes in lifting base provide bolt-down capability
  • Bonding provision on each door

Specifications

  • Height (H): 1,524 millimetre
  • Width (W): 1,346 millimetre
  • Depth (D): 305 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Panel Size (D x E): 1249 x 1219 millimetre
  • Panel: A49P48N
  • Use Rack Angle: ARA6019THG
  • Conductive Panel: A49P48NG
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Related Products

Accessory

  • LED24V15
  • AS050

Overview

UPC 78351013898
GTiN 00783510138981
Finish Powder Coated
Width 53 in
Size 60.00x53.00x12.00 in
Color Gray
Type Disconnect, Free-Stand
Material Steel
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 12 in
Height 60 in
Standard CUL Listed Per CSA C22.2 No. 14,File No. E61997,IEC 60529 IP30,NEMA/EEMAC Type 1,Type 1,UL508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
