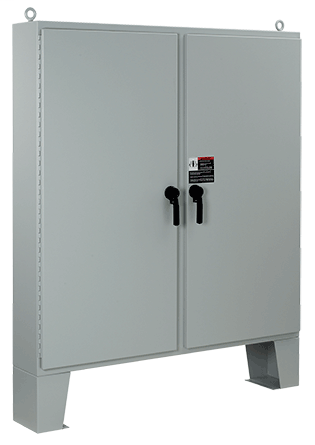

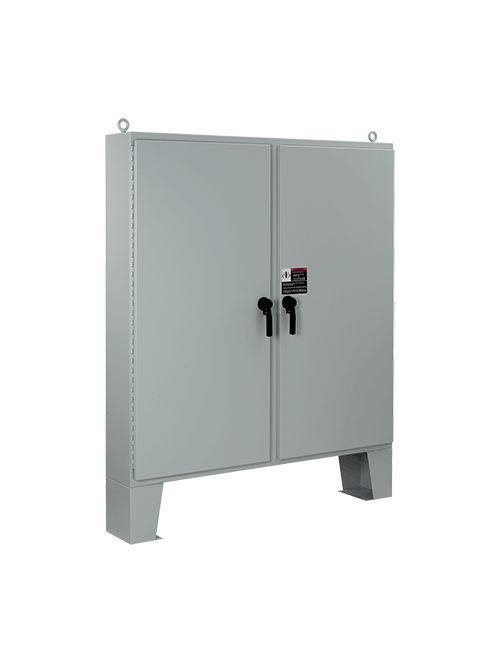

Hoffman A62H4818LP3PT 62.06 x 48.06 x 18.06 Inch 12 Gauge Steel NEMA 4 2-Door Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,664.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A62H4818LP3PT
North Coast Part # 758903

Features

  • Three-point latch for security and ease of use
  • Return flange around the door opening excludes liquids and contaminants
  • Removable centerpost permits easy panel installation
  • 3-point latch system with PowerGlide padlocking handles
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Body stiffeners
  • Panel supports
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Data pocket is high-impact thermoplastic

Specifications

  • Height (H) (inch): 62.06
  • Height (H) (millimetre): 1,576
  • Width (W) (inch): 48.06
  • Width (W) (millimetre): 1,221
  • Depth (D) (inch): 18.06
  • Depth (D) (millimetre): 459
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Panel: A60P48
  • Conductive Panel: A60P48G
  • Body Stiffener (S) (inch): 15
  • Body Stiffener (S) (millimetre): 381
  • Panel Size (D x E) (inch): 56.00 x 44.00
  • Panel Size (D x E) (millimetre): 1422 x 1118
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: 62.06x48.06x18.06 in

Related Products

Accessory

  • A62BP18G
  • A62BP18
  • LED24V15
  • G280416G050
  • A60P48G
  • A60P48
  • AFT44XSS
  • AWDH2416N4
  • AWDH2420N4SS
  • APWK53NF
  • APWK729NFSS
  • AWDH1612N4SS
  • APWK138NFNM
  • APWK95NFSS
  • APWK138NFSS
  • APWK1711NFSS
  • APWK1711NF
  • APWK711NFSS
  • AWDH1418N4
  • APWK95NF
  • APWK53NFNM
  • APWK715NFSS
  • AWDH2416N4SS
  • APWK2315NFSS
  • APWK53NFSS
  • APWK2315NF
  • APWK138NF
  • APWK95NFNM
  • AWDH2016N4
  • APWK175NF
  • AWDH1612N4
  • APWK116NFNM
  • AWDH2016N4SS
  • APWK133NF
  • AWDH1418N4SS
  • AWDH2420N4
  • APWK720NFSS
  • APWK724NFSS
  • ALFSWD
  • ADPX4C
  • ADPX4B
  • ADPX4BLG
  • ADPX4A
  • GSKTKITS375
  • ADPX4ALG
  • ADPX4CLG
  • AASHLF1818
  • GP128
  • GP168
  • GP206
  • GP166
  • AASHLF1218
  • AGP1618
  • AA35SHLF1818
  • AA61SHLF1818
  • AGP1218
  • GP208
  • DLGP610
  • AA35SHLF1218
  • DLGP618
  • GP2412
  • GP126
  • AA61SHLF1218
  • AGP618
  • GP248
  • AHCI240R
  • AHCI5E
  • AHCI10E
  • AHCI60R
  • AHCI238S
  • AHCI1DV
  • LEDA1S35
  • LEDA2S35
  • APE100
  • AS050
  • APS9
  • APE050

Overview

UPC 78351023832
Item Long Description These enclosures are ideal for indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. The design features HOFFMAN's exclusive PowerGlide Handle with 3-point latching for secure closure and floor stands that provide additional height and access for cleaning under the enclosure.
GTiN 00783510238322
Finish Polyester Powder Paint
Width 48.06 in
Size 62.06x48.06x18.06 in
Color ANSI 61 Gray
Type Two Door
Material Steel
Applications For Indoor or Outdoor Applications where it is Necessary to Protect Controls and Instrumentation from Wet, Non-Corrosive Environments
Mounting Type Floor
Depth 18.06 in
Height 62.06 in
Standard CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC, Type 3, 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Gauge 12
Cover Type Continuous Hinged with 3-Point Latch and Powerglide Handle
Sub Brand Hoffman
Thickness 2.66 mm
