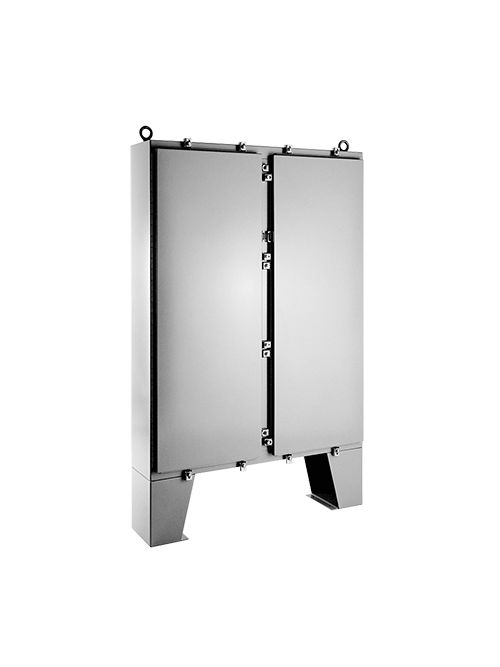

Hoffman A62H48CLP Type 4 62.06 x 48.06 x 10.06 Inch Enclosure
Product image thumbnail 0
Product image thumbnail 1
$3,382.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A62H48CLP
North Coast Part # 218939

Features

  • 12 gauge steel
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Body stiffeners for added strength
  • Removable centerpost permits easy panel installation
  • Panel supports
  • Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
  • Stainless steel door clamps on three sides of each door assure water-tight seal
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Hasp and staple for padlock
  • Data pocket is high-impact thermoplastic
  • 12-in. floor stands welded to enclosure
  • Heavy-duty lifting eyes
  • Oil-resistant door gasket
  • Collar studs provided for mounting optional panels
  • Grounding stud on body
  • Bonding provision on door
  • Provision for mounting fluorescent light

Notes

  • Purchase panels separately

Accessories

  • InterSafe Data Interface Ports, Type 4/4X/12
  • Industrial Corrosion Inhibitors
  • Panelite Enclosure Lights Overview
  • Panel Support Kit
  • Toggle Latch for Type 4 and 4X Floor-Mount and Free-Stand
  • Enclosures

Specifications

  • Bulletin Number: A4L
  • Material: Steel
  • Model Code: 26400
  • Ship Wt. Std. Pkg. (lbs): 392.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A62H48CLP
  • A in.: 62.06
  • B in.: 48.06
  • C in.: 10.06
  • Panel: A60P48
  • Conductive Panel: A60P48G
  • Panel Size D x E in.: 15.00
  • Body Stiffener S in.: 15
  • Number of Clamps: 16
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 3, Type 4, 12, 13 || CSA, File No. LR42186, Type 4, 12 || IEC 60529, IP66

Overview

UPC 78351026400
GTiN 00783510264000
Finish Powder Coated
Width 48.06 in
Size 62.06x48.06x10.06 in
Color Gray
Type Double Door, Gangable, Sixteen Lock
Material Steel
Applications For Outdoor
Mounting Type Floor
Depth 10.06 in
Height 62.06 in
Standard 12,13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. E61997,File No. LR42186,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Family Brand Name Hoffman
Gauge 12 ga
Sub Brand Hoffman
