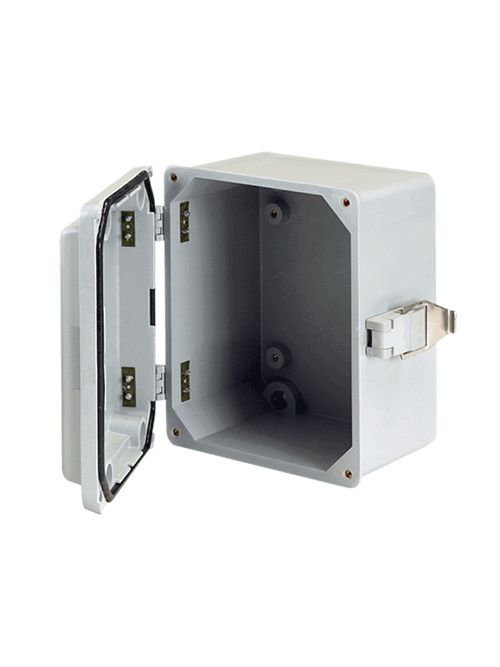

Hoffman A645JFGR 6 x 4 x 5 Inch Fiberglass NEMA 4X Junction Box
$154.41/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A645JFGR
North Coast Part # 216220

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges. Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail. Attached with Type 316 stainless steel screws. A Type 316L stainless steel padlock hasp is furnished with each enclosure.
  • Sealing washers are furnished with enclosure

Notes

  • Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
  • For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With Hoffman’s products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes

Specifications

  • Bulletin Number: A50
  • Material: Fiberglass
  • Model Code: 41130
  • Ship Wt. Std. Pkg. (lbs): 16.0
  • Interchangeable: False
  • Catalog Number: A645JFGR
  • A in.: 6
  • B in.: 4
  • C in.: 5
  • Description: Solid Screw Cover
  • Inside Dimensions A x B x C in.: 5.50 x 4.00 x 4.94
  • Steel Panel: No Panel
  • Mounting G x H in.: 4.75 x 2.00
  • Overall L x W in.: 6.00 x 4.50
  • F in.: 4.41
  • J in.: 4.13
  • K in.: 1.00
  • X in.: 4.22
  • Y in.: 3.59
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; || File No. E61997 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 3R, 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351041130
GTiN 7.8351E+11
Finish Untreated
Width 102 mm
Size 5.50x4.00x4.94 in
Color 7035 Light Gray
Type Single Lock, Single Door
Material Fiberglass
Applications Controls and Drives; Corrosive Environments
Mounting Type Wall
Depth 127 mm
Height 152 mm
Standard IEC 60529, IP66,File No. E61997,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,CSA File No. 42186: Type 3R, 4, 4X, 12,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Window Flammability Evaluated Per UL 508A,Enclosure Flammability Evaluated Per UL 508A
Capacity 109 cu in
Family Brand Name Hoffman
Cover Type Screw or Hinged with Quick-Release Latch
Sub Brand Hoffman
