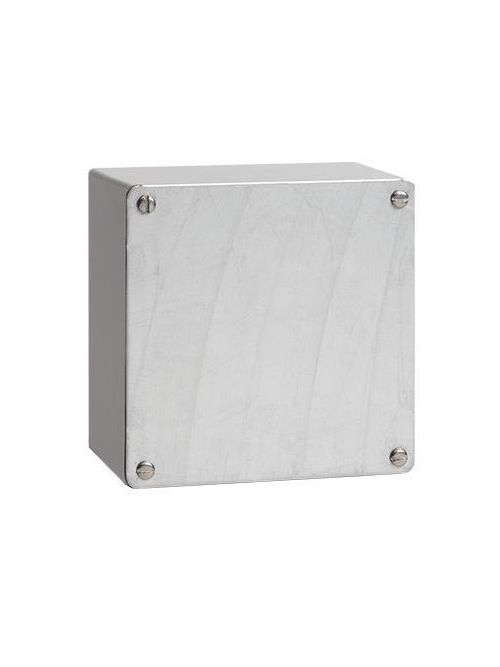

Hoffman A666GSC 6 x 6 x 6 Inch 14 Gauge Galvanized Steel NEMA 3 Screw Cover Enclosure
$92.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A666GSC
North Coast Part # 603885

Features

  • Captivated stainless steel cover screws thread into sealed wells
  • Oil-resistant gasket and adhesive
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Grounding stud on inside back of box
  • 14 or 12 gauge G-90 grade galvanized steel bodies
  • 12 or 10 gauge G-90 grade galvanized steel covers

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Mounting Bracket Kit

Specifications

  • Bulletin Number: A90GS
  • Material: Steel
  • Model Code: 49029
  • Ship Wt. Std. Pkg. (lbs): 5.0
  • Interchangeable: False
  • Catalog Number: A666GSC
  • A in.: 6
  • B in.: 6
  • C in.: 6
  • Number of Cover Screws: 4
  • Cover Gauge: 12
  • Body Gauge: 14
  • Standards: UL 508A Listed; Type 3, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 12; File No. E61997 || NEMA/EEMAC Type 3 and 12 (except for mounting provisions) || CSA, File 42184: Type 4 and 12 || IEC 60529, IP66

Overview

UPC 78351049029
GTiN 00783510490294
Width 6 in
Size 6.00x6.00x6.00 in
Type Screw-Cover, Gasketed, Type 3
Material Steel
Applications Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
Depth 6 in
Height 6 in
Standard IEC 60529,CSA,NEMA/EEMAC Type 3 And 12 (except For Mounting Provisions),CUL Listed Per CSA C22.2 No 94,UL 508A Listed,IP66,12,File 42184: Type 4 And 12,File No. E61997,Type 3
Number of Screws 4
Family Brand Name Hoffman
Cover Gauge 12
Body Gauge 14
Sub Brand Hoffman
