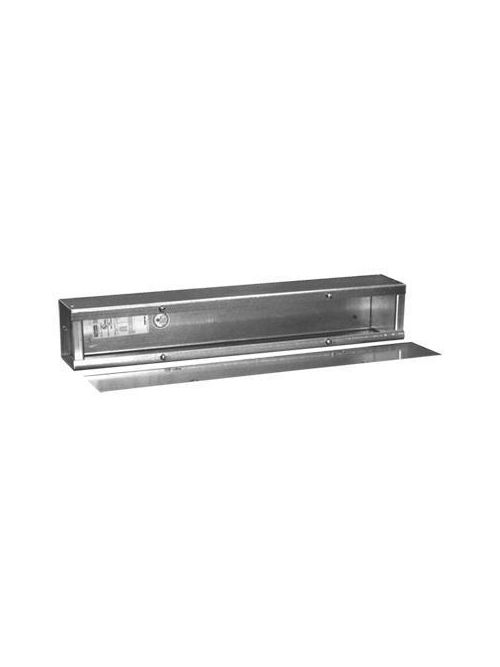

Hoffman A6696T1T 6 x 6 x 96 Inch NEMA 1 16 Gauge Plated Steel Wire Trough
Product image thumbnail 0
Product image thumbnail 1
$267.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A6696T1T
North Coast Part # 933499

Features

  • Keyhole screw slots in cover
  • Shipped completely assembled—no end caps to install
  • Mounting holes on the back of the enclosure
  • Flat cover fastened with plated steel screws
  • No gasketing or knockouts
  • 16 or 14 gauge plated steel

Specifications

  • Bulletin Number: F40T1
  • Material: Steel
  • Model Code: 11288
  • Ship Wt. Std. Pkg. (lbs): 47.5
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A6696T1T
  • A in.: 6
  • B in.: 6
  • C in.: 96
  • Gauge: 16
  • Mounting G in.: 84.00
  • Mounting H in.: 4.00
  • Standards: UL 870 Listed; File No. E27524 || cUL CSA C22.2 No. 26 Listed; File No. E27524 || NEMA/EEMAC: Type 1 || IEC 60529, IP30

Overview

UPC 78351011288
GTiN 00783510112882
Finish Painted Steel
Width 6 in
Size 6.00x6.00x96.00 in
Color Gray
Type Plated Steel Screw-Cover Wiring Trough, Type 1
Material Steel
Applications Power Distribution
Depth 96 in
Height 6 in
Standard CUL CSA C22.2 No. 26 Listed,File No. E27524,IEC 60529,IP30,NEMA/EEMAC: Type 1,UL 870 Listed
Family Brand Name Hoffman
Gauge 16 AWG
Sub Brand Hoffman
