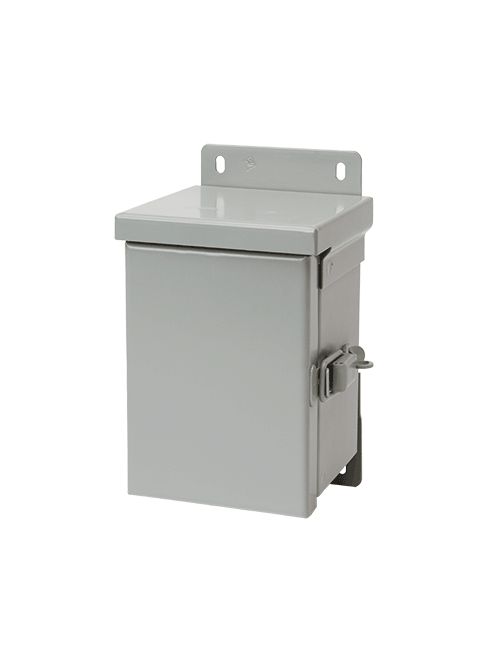

Hoffman A6R44HCR 6 x 4 x 4 Inch 16 Gauge Galvanized Steel NEMA 3R Hinge Cover Enclosure
$63.66/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A6R44HCR
North Coast Part # 272637

Features

  • Drip-shield top and seam-free sides, front and back
  • Plated steel hinge has stainless steel pin
  • Weldnuts provided for mounting optional panels
  • Provisions for padlocking on zinc-plated draw-pull catch
  • Knockouts on bottom of enclosure
  • No gasketing
  • 16 gauge galvanized steel

Notes

  • Purchase panels separately.
  • Purchase perforated panels separately.

Accessories

  • Industrial Corrosion Inhibitors
  • Grounding Device
  • Panels for Type 1 Enclosures and Small Type 3R Enclosures
  • Touch-Up Paint

Specifications

  • Bulletin Number: A3SM
  • Material: Steel
  • Model Code: 13402
  • Ship Wt. Std. Pkg. (lbs): 15.04
  • Interchangeable: False
  • Finish: Galv/paint
  • Catalog Number: A6R44HCR
  • A in.: 6
  • B in.: 4
  • C in.: 4
  • Panel Size D x E in.: 4.25 x 2.25
  • Overall L x W in.: 8.00 x 4.81
  • Mounting G in.: 7.00
  • Panel: A6N4P
  • Knockout Pattern: B-C-D
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27567 || cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567 || NEMA/EEMAC Type 3R || IEC 60529, IP32

Categories

Overview

UPC 78351013402
GTiN 00783510134020
Finish Galv/paint
Width 4 in
Size 6.00x4.00x4.00 in
Type Hinge-Cover, Small, Type 3R
Material Steel
Applications These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in. and meet basic functionality requirements for applications that require protection from rain, sleet, snow or dripping water.
Depth 4 in
Height 6 in
Standard NEMA/EEMAC Type 3R,UL 50,IEC 60529,50E Listed,IP32,CUL Listed Per CSA C22.2 No 94,Type 3R File No. E27567,File No. E27567,Type 3R
Family Brand Name Hoffman
Sub Brand Hoffman
