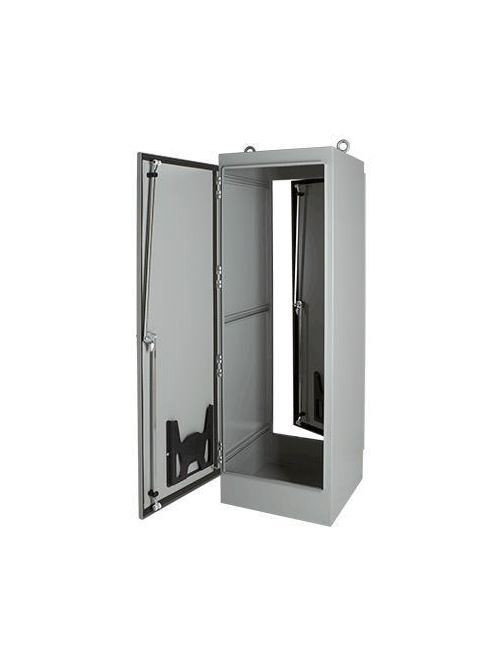

Hoffman A722424FSDA 72.06 x 24.06 x 24.06 Inch White 12 Gauge Steel NEMA 12 1-Door Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
$2,485.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A722424FSDA
North Coast Part # 682273

Features

  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oil-tight key-locking handle
  • Concealed, easy-to-remove hinges
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door

Specifications

  • Height (H): 1,830 millimetre
  • Width (W): 611 millimetre
  • Depth (D): 611 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Unit Quantity: 35
  • Lifting Eye Quantity: 2
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 2.66 millimetre

Related Products

Accessory

  • ASPANKIT72
  • ASMP12SS
  • ASMP34SS
  • A72RP30F5
  • ASMP58SS
  • G280416G050
  • LED24V15
  • ALGDSTOP2
  • AEK115
  • A72SMP14
  • AL3A
  • AL2DR
  • AL2A
  • AL3DR
  • APWK138NF
  • A72P24F2G
  • A72P24F1G
  • A72P24F1
  • A72P24F2
  • P19RP3UP
  • A72SMP20
  • P19RP1UP
  • P19RP4UP
  • P19RP2UP
  • A72RP24F5
  • P19RP5UP
  • P19RP6UP
  • A60P24F1
  • P19RP8UP
  • GSKTKITE375
  • P19RP1UA
  • P19RP5UA
  • A72RP24F6
  • P19RP7UP
  • A72FSHDPS
  • P19RP3UA
  • P19RP7UA
  • P19RP9UP
  • A19SH6
  • A72SMP14G
  • P19RP10UP
  • P19RP16UP
  • A72RA19TH
  • P19RP4UA
  • A60RP24F5
  • P19RP12UP
  • P19RP12UA
  • A60P24F2
  • P19RP11UA
  • DMCKC
  • P19RP6UA
  • AG1U6
  • P19RP2UA
  • P19RP8UA
  • P19RP11UP
  • A60P24F1G
  • A60RA19TH
  • A72SMP20G
  • A72SP24F3
  • P24RP5UP
  • A60P24F2G
  • A72SP24F4
  • A90RP24F6
  • ADK24HH
  • A19WSDR
  • A90P24F2
  • A90P24F2G
  • P24RP3UP
  • P24RP8UA
  • P24RP8UP

Overview

UPC 78351025390
GTiN 00783510253905
Finish Powder Coated
Width 24.06 in
Size 72.06x24.06x24.06 in
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 24.06 in
Height 72.06 in
Standard CSA,CUL Listed Per CSA C22.2 No. 94,E.I.A. RS310D,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 2.66 Millimetre mm
