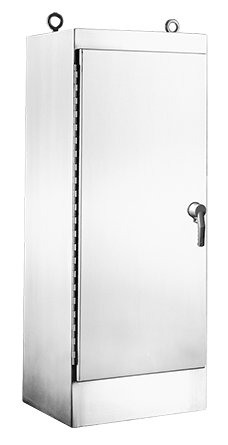

Hoffman A722424SSFSN4 72.06 x 24.06 x 24.06 Inch 12 Gauge 304 Stainless Steel NEMA 4X 1-Door Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$10,211.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A722424SSFSN4
North Coast Part # 754749

Features

  • Seams continuously welded and ground smooth; no holes or knockouts
  • Two-door enclosures provided with a removable centerpost for easy panel installation
  • Heavy-duty lifting eyes are Type 316L stainless steel
  • Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
  • Seemless foam-in-place gasket assures a water-tight and dust-tight seal
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-gauge continuous hinges support each door
  • High-impact thermoplastic data pocket provided with each enclosure
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Optional panels and rack mounting angles can be mounted anywhere along channels

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 24.06
  • Width (W) (millimetre): 611
  • Depth (D) (inch): 24.06
  • Depth (D) (millimetre): 611
  • Protection Rating: NEMA Type 4X
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.78
  • Size: 72.06x24.06x24.06 in

Related Products

Accessory

  • AS050SS
  • G280416G051
  • A72P24F1G
  • A72P24F1
  • A90P24F2
  • A60P24F2G
  • A60P24F1G
  • A72P24F2
  • A60P24F2
  • A72P24F2G
  • A90P24F2G
  • A60P24F1
  • A72SP24F3
  • A72SP24F4
  • A72SMP20
  • A72SMP14
  • A72SMP14G
  • A72SMP20G
  • A72FSHDPS
  • APS1420CN
  • APS51618CN
  • DMCKC
  • P19RP12UA
  • P19RP2UA
  • P19RP11UA
  • P19RP4UA
  • P19RP5UA
  • P19RP7UA
  • P19RP9UA
  • P19RP10UA
  • P19RP3UA
  • P19RP1UA
  • P19RP6UA
  • P19RP8UA
  • A72RP24F6
  • A72RP24F5
  • A60RP24F5
  • A90RP24F6
  • A72RA19TH
  • A60RA19TH
  • AN1032
  • P19DR1US
  • P19DR3US
  • P19DR2US
  • P19WS
  • P19SHP810
  • P19SHP68
  • AG1U6
  • ASMP12SS
  • ASMP34SS
  • ASMP58SS
  • ASPANKIT72
  • LED24VCORD
  • LED24V15
  • AEKDF
  • AEK115NDH
  • GSKTKITS375
  • AFK2424SS
  • AFK1224SS
  • AFK1824SS
  • AFK0624SS
  • ADPX4ASS
  • ADPX4CSS
  • ADPX4BSS
  • HDP5ETHETHSS
  • HGF5ETHETHSS
  • HDP5USBUSBSS
  • HGF5USBUSBSS

Overview

UPC 78351011151
Item Long Description Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries. Four styles are available to provide maximum flexibility.
GTiN 00783510111519
Width 24.06 in
Size 72.06x24.06x24.06 in
Type Free-Stand Single And Dual Access With 3-Point Latches,Type 4X
Material STAINLESS STEEL
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 611 mm
Height 72.06 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,E.I.A. RS-310-D,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 2.78 mm
