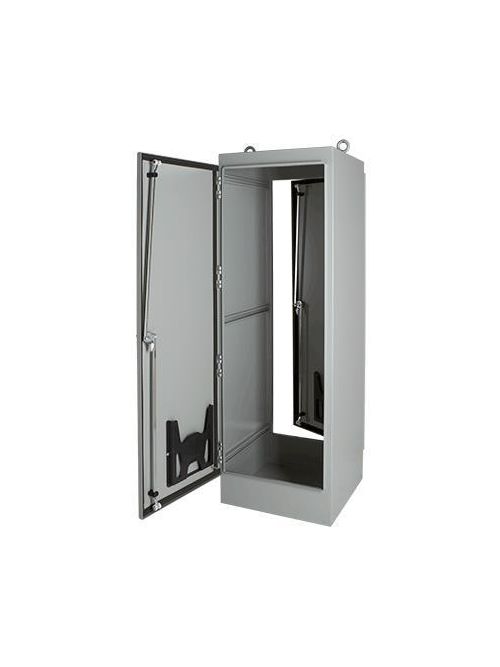

Hoffman A722436FSDA 72.06 x 24.06 x 36.06 Inch White 12 Gauge Steel NEMA 12 1-Door Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,387.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A722436FSDA
North Coast Part # 547141

Features

  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oil-tight key-locking handle
  • Concealed, easy-to-remove hinges
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 24.06
  • Width (W) (millimetre): 611
  • Depth (D) (inch): 36.06
  • Depth (D) (millimetre): 916
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Rack Unit Quantity: 35
  • Lifting Eye Quantity: 4
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: 72.06x24.06x36.06 in

Related Products

Accessory

  • ASMP58SS
  • ASMP34SS
  • ASMP12SS
  • ASPANKIT72
  • G280416G050
  • LED24V15
  • ALGDSTOP2
  • AEK115
  • A72SMP14
  • AL3A
  • AL2DR
  • AL2A
  • AL3DR
  • APWK138NF
  • A72P24F2G
  • A72P24F2
  • A72P24F1G
  • A72P24F1
  • P19RP3UP
  • A72SMP20
  • P19RP1UP
  • P19RP4UP
  • P19RP2UP
  • A72RP24F5
  • P19RP5UP
  • P19RP6UP
  • A60P24F1
  • P19RP8UP
  • GSKTKITE375
  • P19RP1UA
  • P19RP5UA
  • A72RP24F6
  • P19RP7UP
  • A72FSHDPS
  • P19RP3UA
  • P19RP7UA
  • P19RP9UP
  • A19SH6
  • A72SMP14G
  • P19RP10UP
  • P19RP16UP
  • A72RA19TH
  • P19RP4UA
  • A60RP24F5
  • P19RP12UP
  • P19RP12UA
  • A60P24F2
  • P19RP11UA
  • DMCKC
  • P19RP6UA
  • AG1U6
  • P19RP2UA
  • P19RP8UA
  • P19RP11UP
  • A60P24F1G
  • A60RA19TH
  • A72SMP20G
  • A72SP24F3
  • P24RP5UP
  • A60P24F2G
  • A72SP24F4
  • A90RP24F6
  • ADK24HH
  • A19WSDR
  • A90P24F2
  • A90P24F2G
  • P24RP3UP
  • P24RP8UA
  • P24RP8UP

Overview

UPC 78351025090
Item Long Description Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options to provide panel and component mounting flexibility
GTiN 00783510250904
Finish Powder Coated
Width 24.06 in
Size 72.06x24.06x36.06 in
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 916 mm
Height 72.06 in
Standard CSA,CUL Listed Per CSA C22.2 No. 94,E.I.A. RS310D,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Color Gray
Thickness 2.66 mm
