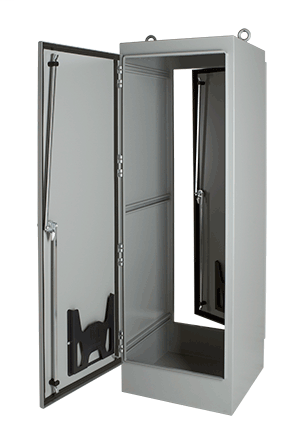

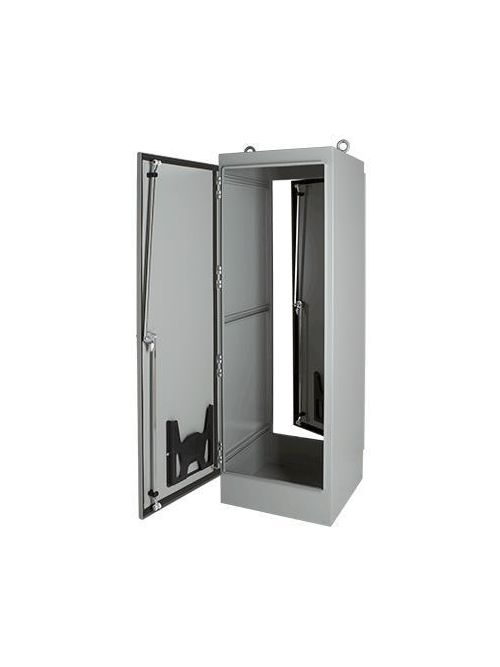

Hoffman A723624FSDA 72.06 x 36.06 x 24.06 Inch White 12 Gauge Steel NEMA 12 1-Door Free Stand Enclosure

Features

• 12 gauge steel
• Seams continuously welded and ground smooth; no holes or knockouts
• Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
• Lifting eyes for easy handling
• 3-point latches operated by oil-tight key-locking handle
• Concealed, easy-to-remove hinges
• Data pockets are high-impact thermoplastic
• Internal mounting channels welded horizontally to sides at top, bottom and center
• Optional panels and rack mount angles can be mounted anywhere along channels
• Oil-resistant door gasket
• Bonding provision on door
• Provision for mounting fluorescent light

Notes

• Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
• Four lifting eyes are furnished if C = 30.06 (764mm) or more. Removable 12.00 x 12.00 (305mm x 305mm) data pocket included.

Accessories

• Plate Casters
• Electric Heater
• Door Stop Kit
• Compact Cooling Fans
• Panelite Enclosure Lights Overview

Specifications

• Bulletin Number: A30
• Material: Steel
• Model Code: 25410
• Ship Wt. Std. Pkg. (lbs): 396.0
• Interchangeable: False
• Finish: Painted Steel
• Catalog Number: A723624FSDA
• A in.: 72.06
• B in.: 36.06
• C in.: 24.06
• F in.: 38.03
• G in.: 29.12
• Description: Standard Product: One-Door Dual-Access
• Interior Finish: White
• Number of Rack Units: 35
• Number of Lifting Eyes: 2
• Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || E.I.A. RS310D || CSA, File No. 42186, Type 12 || IEC 60529, IP55 || Applicable industry standards only for enclosures with Seismic || Accessories: || NEBS- Telcordia GR-63-CORE Zone 4, tested with 1000lbs evenly distributed || OSHPD Pre-Approval OPM-0247-13
