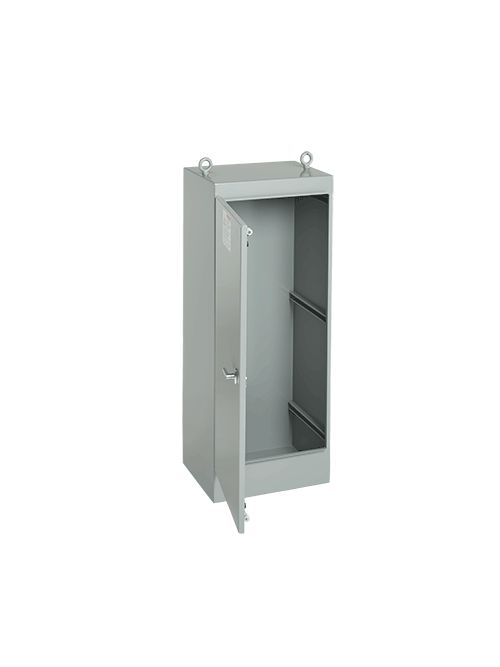

Hoffman A723630FSG 72.06 x 36.06 x 30.06 Inch Gray 12 Gauge Steel NEMA 12 1-Door Free Stand Enclosure
$2,529.35/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A723630FSG
North Coast Part # 934074

Features

  • 12 gauge steel
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
  • Lifting eyes for easy handling
  • 3-point latches operated by oil-tight key-locking handle
  • Concealed, easy-to-remove hinges
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • Optional panels and rack mount angles can be mounted anywhere along channels
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting fluorescent light

Notes

  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.
  • Four lifting eyes are furnished if C = 30.06 (764mm) or more. Removable 12.00 x 12.00 (305mm x 305mm) data pocket included.

Accessories

  • Plate Casters
  • Electric Heater
  • Door Stop Kit
  • Compact Cooling Fans
  • Panelite Enclosure Lights Overview

Specifications

  • Bulletin Number: A30
  • Material: Steel
  • Model Code: 38589
  • Ship Wt. Std. Pkg. (lbs): 424.0
  • Interchangeable: False
  • Catalog Number: A723630FSG
  • A in.: 72.06
  • B in.: 36.06
  • C in.: 30.06
  • F in.: 38.03
  • G in.: 29.12
  • Description: Standard Product: One-Door Single-Access
  • Interior Finish: Gray
  • Number of Rack Units: 35
  • Number of Lifting Eyes: 4
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || E.I.A. RS310D || CSA, File No. 42186, Type 12 || IEC 60529, IP55 || Applicable industry standards only for enclosures with Seismic || Accessories: || NEBS- Telcordia GR-63-CORE Zone 4, tested with 1000lbs evenly distributed || OSHPD Pre-Approval OPM-0247-13

Overview

UPC 78351038589
GTiN 00783510385897
Finish Gray
Width 36.06 in
Size 72.06x36.06x30.06 in
Color Gray
Type Free-Stand, Single or Dual Access, Type 12
Material Steel
Applications Available with front or front and rear access, these Type 12 enclosures have sturdy unibody construction and flexible internal mounting options.
Depth 30.06 in
Height 72.06 in
Standard IP55,CSA,IEC 60529,E.I.A. RS310D,UL 508A Listed,NEMA/EEMAC Type 12,File No. 42186,CUL Listed Per CSA C22.2 No. 94,File No. E61997,Type 12
Family Brand Name Hoffman
Sub Brand Hoffman
