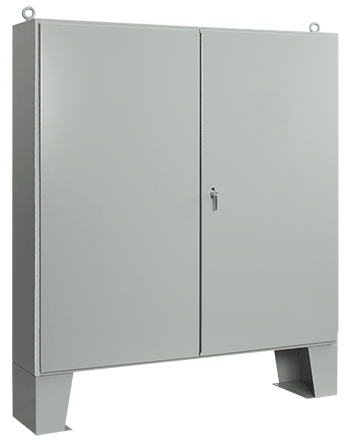

Hoffman A726016ULP 72.06 x 60.06 x 16.06 Inch White 12 Gauge Steel NEMA 12 Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,470.58/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A726016ULP
North Coast Part # 152136

Features

  • Seams continuously welded and ground smooth; no holes or knockouts
  • 3-point latch mechanism operated by oil-tight key-lock handle
  • Gasketed overlapping doors with no centerpost
  • Concealed, easy-to-remove hinges
  • Data pocket is high-impact thermoplastic
  • 12-in. floor stands welded to enclosure
  • Heavy-duty lifting eyes
  • Panel supports
  • Oil-resistant gasket
  • Collar studs for mounting optional panel

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 60.06
  • Width (W) (millimetre): 1,526
  • Depth (D) (inch): 16.06
  • Depth (D) (millimetre): 408
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A72P60
  • Conductive Panel: A72P60G
  • Panel Gauge: 11
  • Panel Size (inch): 68.00 x 56.00
  • Panel Size (millimetre): 1727 x 1422
  • Stiffener (inch): 21
  • Stiffener (millimetre): 533
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: 72.06x60.06x16.06 in

Related Products

Accessory

  • N280416G050
  • LED24V15
  • A72P60G
  • A72P60
  • APWK95NFNM
  • APWK1711NFSS
  • AWDH2416N4
  • APWK3024H
  • AWDH2430N4SS
  • APWK2919NF
  • AWDH1418N4
  • APWK1711NF
  • APWK2919NFSS
  • AWDH1612N4SS
  • APWK53NFSS
  • AWDH2016N4SS
  • APWK175NF
  • APWK2315NF
  • APWK2315NFSS
  • AWDH3024N4
  • APWK138NF
  • AWDH2420N4
  • AWDH2416N4SS
  • AWDH2430N4
  • AWDH3624N4SS
  • APWK2016H
  • APWK729NFSS
  • APWK138NFSS
  • APWK3523NF
  • APWK133NF
  • AWDH1612N4
  • AWDH3624N4
  • APWK53NF
  • AWDH2016N4
  • APWK715NFSS
  • APWK2020H
  • APWK720NFSS
  • APWK711NFSS
  • APWK95NFSS
  • APWK116NFNM
  • APWK1612H
  • APWK724NFSS
  • APWK53NFNM
  • AWDH1418N4SS
  • APWK95NF
  • AWDH3024N4SS
  • APWK1212H
  • APWK2420H
  • APWK138NFNM
  • AWDH2420N4SS
  • ALFSWD
  • GP168
  • AA61SHLF1818
  • AA35SHLF1218
  • AGP1218
  • AGP618
  • AASHLF1818
  • AA35SHLF2424
  • AA61SHLF2424
  • AASHLF2424
  • GP248
  • GP166
  • GP126
  • AA61SHLF1218
  • GP128
  • AASHLF1218
  • AA35SHLF1818
  • AGP1618
  • GP206
  • DLGP618
  • DLGP610
  • GP2412
  • GP208
  • ADK72HH
  • ADK60HH
  • HDP5ETHETH
  • HDP5USBUSB
  • AHCI1DV
  • AHCI10E
  • AHCI240R
  • AHCI5E
  • AHCI60R
  • AHCI238S
  • LEDA2S35
  • LEDA1S35
  • ATZ
  • A60T
  • AS050
  • APE100
  • APE050

Categories

Overview

UPC 78351027700
Item Long Description Enclosures have gasketed, overlapping doors to keep the elements at bay and floor stands that provide additional height and access for cleaning under the enclosure. Because there is no centerpost, it is simple to install and remove panels.
GTiN 00783510277000
Finish Powder Coated
Width 1526 mm
Size 72.06x60.06x16.06 in
Color Gray
Type Double Door, Single Lock
Material Steel
Applications Controls and Drives; Power Distribution
Mounting Type Floor
Depth 408 mm
Height 1830 mm
Standard CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Gauge 12 AWG
Sub Brand Hoffman
Thickness 2.66 mm
