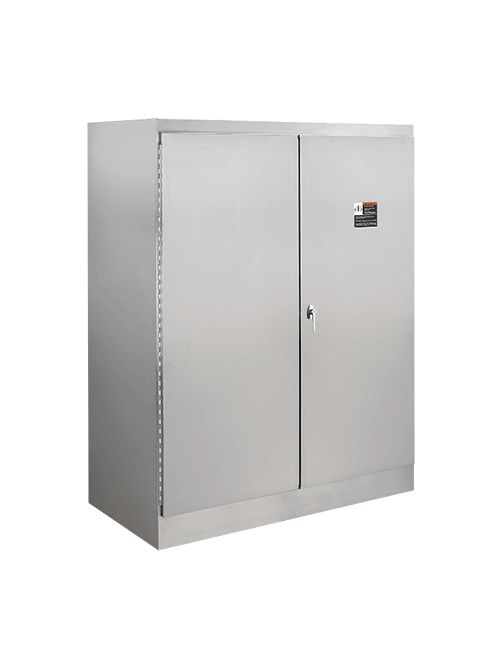

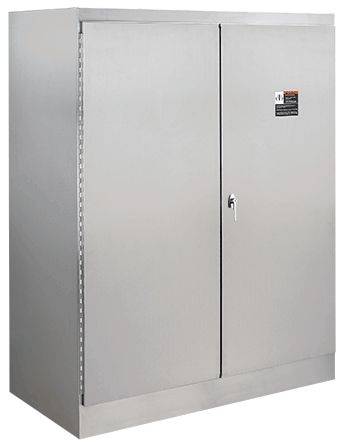

Hoffman A726018SSFSD 72.06 x 60.06 x 18.06 Inch 12 Gauge 304 Stainless Steel NEMA 12 Free Stand Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16,561.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A726018SSFSD
North Coast Part # 674414

Features

  • Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 12 environments
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Stiffeners welded to back of enclosures maintain flatness and increase rigidity
  • Heavy-duty lifting eyes are Type 316 stainless steel
  • Plated steel 3-point latching and keylocking handle
  • Heavy-gauge continuous hinges support each door
  • Data pocket, provided on door(s) with 3-point latches, is high-impact thermoplastic
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Optional panels and rack-mounting angles can be mounted anywhere along channels
  • Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 60.06
  • Width (W) (millimetre): 1,526
  • Depth (D) (inch): 18.06
  • Depth (D) (millimetre): 459
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 12 Indoor, dust-resistant
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.78
  • Size: 72.06x60.06x18.06 in

Related Products

Accessory

  • LED24V15
  • AS050SS
  • G280416G051

Categories

Overview

UPC 78351084550
Item Long Description Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries.
GTiN 00783510845506
Width 60.06 in
Size 72.06x60.06x18.06 in
Type Free-Stand, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 459 mm
Height 72.06 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No 94,E.I.A. RS-310-D,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 2.78 mm
