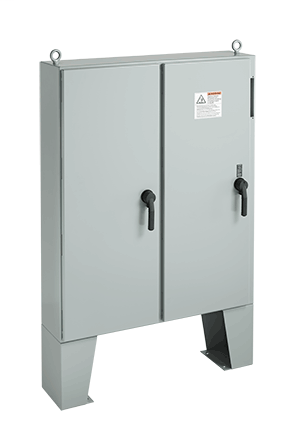

HOFF-E A72CPX7218LPFTCG Two door CP
$7,006.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72CPX7218LPFTCG
North Coast Part # 879500

Features

  • .121-in. steel
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Removable centerposts permit easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
  • Heavy-duty lifting eyes anchor into reinforced top
  • Data pocket is high impact thermoplastic
  • 15-in. floor stands are welded to enclosure
  • Provisions for mounting lights
  • Oil-resistant door gasket
  • Panel supports
  • Collar studs provided for mounting optional panels
  • Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
  • Mechanical interlock operated by master door prevents slave door from being opened first. Doors can be closed in any order.
  • Includes door hardware

Notes

  • Purchase panels separately.
  • All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCLPA, purchased separately. • ABB Controls flange-operated devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism (see footnote below) • General Electric Type TDA devices (see footnote below) • Schneider Square D Class 9422 devices (see footnote below)
  • The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods.

Accessories

  • Blank Adapter Plates, Mild Steel
  • InterSafe™ Data Interface Ports, Type 4/4X/12
  • Operator Adapters for Universal Cutouts
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A21
  • Material: Steel
  • Model Code: 25664
  • Ship Wt. Std. Pkg. (lbs): 809.0
  • Interchangeable: False
  • Catalog Number: A72CPX7218LPFTCG
  • A in.: 72.12
  • B in.: 72.5
  • C in.: 18.12
  • Panel Size D x E in.: 68.00 x 68.00
  • Conductive Panel: A72P72G
  • Panel: A72P72
  • Stiffener Position S in.: 24.00
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55

Overview

UPC 78351025664
GTiN 00783510256647
Width 72.5 in
Size 72.12x72.50x18.12 in
Color Gray
Type Two-Door with Floor Stands Disconnect Enclosure, Type 12
Material Steel
Applications A disconnect can be installed on the centerpost or right side of this enclosure. Floor stands provide additional height and access for cleaning under the enclosure.
Depth 18.12 in
Height 72.12 in
Standard IEC 60529,IP55,CUL Listed Per CSA C22.2 No. 94,File No. E61997,Type 12,CSA File No. 42186: Type 12,UL 508A Listed,NEMA/EEMAC Type 12
Family Brand Name Hoffman
Sub Brand Hoffman
