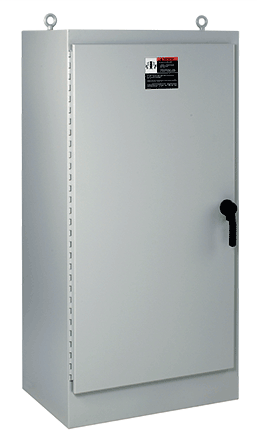

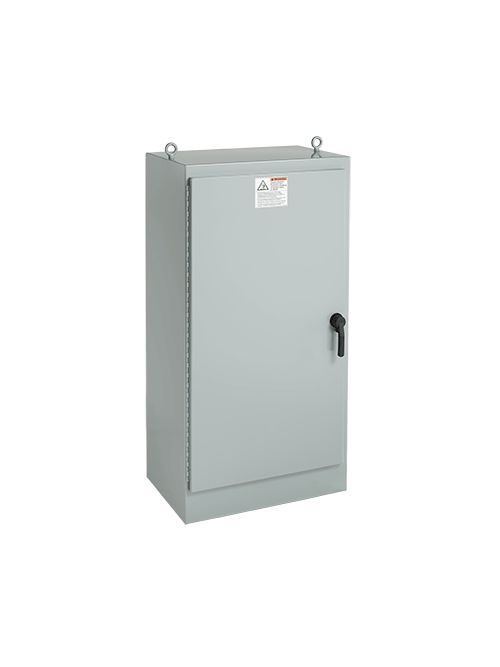

Hoffman A72H3724FS3PT 72.06 x 37.06 x 24.06 Inch 12 Gauge Steel NEMA 4 Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,190.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72H3724FS3PT
North Coast Part # 333906

Features

  • 3-point latch for security and ease of use
  • Mounting channels accommodate panel or rack-mount equipment
  • Panels and rack mount angles can be mounted anywhere along channels
  • Rolled flange around door opening excludes liquids and contaminants
  • Lifting eyes for easy handling
  • 3-point latch system with PowerGlide handle
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Mounting channels welded horizontally to interior body sides at top, bottom and center
  • Heavy-gauge continuous hinge with stainless steel hinge pin

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 37.06
  • Width (W) (millimetre): 941
  • Depth (D) (inch): 24.06
  • Depth (D) (millimetre): 611
  • Protection Rating: NEMA Type 4
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Rack Units: 35
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Size: 72.06x37.06x24.06 in

Related Products

Accessory

  • AS050
  • APWK53NF
  • LED24V15
  • G280416G050
  • A72SMP20
  • P19RP12UA
  • P19RP7UA
  • A60P36F1
  • P19RP1UA
  • P19RP10UA
  • A60P36F2G
  • P19RP3UA
  • P19RP4UA
  • A72SP36F3
  • P19RP2UA
  • A72SMP14
  • P19RP11UA
  • A90P36F2G
  • A72FSHDPS
  • A60P36F2
  • P19RP9UA
  • A72P36F2G
  • A72P36F1G
  • P19RP8UA
  • A72P36F1
  • A72SP36F4
  • P19RP5UA
  • A60P36F1G
  • P19RP6UA
  • A90P36F2
  • A72P36F2
  • AFT44XSS
  • APS51618CN
  • APS1420CN
  • APWK133NF
  • APWK729NFSS
  • APWK95NFSS
  • APWK720NFSS
  • APWK1711NFSS
  • APWK2315NF
  • AWDH3624N4SS
  • AWDH2430N4SS
  • APWK138NF
  • APWK2919NFSS
  • AWDH2430N4
  • APWK116NFNM
  • AWDH1612N4
  • AWDH1418N4SS
  • AWDH3024N4SS
  • AWDH3024N4
  • APWK138NFSS
  • APWK175NF
  • AWDH1418N4
  • APWK1711NF
  • APWK138NFNM
  • APWK2919NF
  • APWK711NFSS
  • AWDH2016N4
  • APWK95NF
  • APWK724NFSS
  • APWK95NFNM
  • AWDH2416N4
  • AWDH2420N4SS
  • APWK3523NF
  • APWK2315NFSS
  • AWDH2016N4SS
  • AWDH1612N4SS
  • APWK53NFSS
  • APWK53NFNM
  • AWDH2416N4SS
  • AWDH2420N4
  • APWK715NFSS
  • AWDH3624N4
  • ADPX4ALG
  • ALFSWD
  • GSKTKITS375
  • ADPX4CLG
  • ADPX4C
  • ADPX4A
  • ADPX4BLG
  • ADPX4B
  • GP166
  • GP126
  • GP208
  • AA35SHLF1818
  • AASHLF1818
  • AA35SHLF1218
  • AA35SHLF2424
  • AA61SHLF2424
  • AA61SHLF1218
  • GP168
  • GP206
  • GP2412
  • AGP1218
  • GP128
  • AGP618
  • AGP1618
  • DLGP618
  • GP248
  • DLGP610
  • AASHLF1218
  • AASHLF2424
  • AA61SHLF1818
  • AHCI10E
  • AHCI238S
  • AHCI5E
  • AHCI240R
  • AHCI60R
  • AHCI1DV
  • LEDA2S35
  • LEDA1S35
  • APE050
  • DMCKC
  • AS1032
  • ASM5
  • APS9
  • A7236SOF19
  • APE100

Overview

UPC 78351015454
Item Long Description These enclosures are ideal for mounting equipment on panels or racks in indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. The design features HOFFMAN's exclusive PowerGlide Handle with 3-point latching for secure closure.
GTiN 00783510154547
Finish Powder Coated
Width 941 mm
Size 72.06x37.06x24.06 in
Color Gray
Type Single Door, Single Lock, Free-Stand
Material Steel
Applications For Indoor, Outdoor
Mounting Type Floor
Depth 611 mm
Height 1830 mm
Standard CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,E.I.A. RS310D,IEC 60529, IP66,NEMA Type 3, 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Rack Unit 35
Cover Type 3-Point Latch
Sub Brand Hoffman
Thickness 2.66 mm
