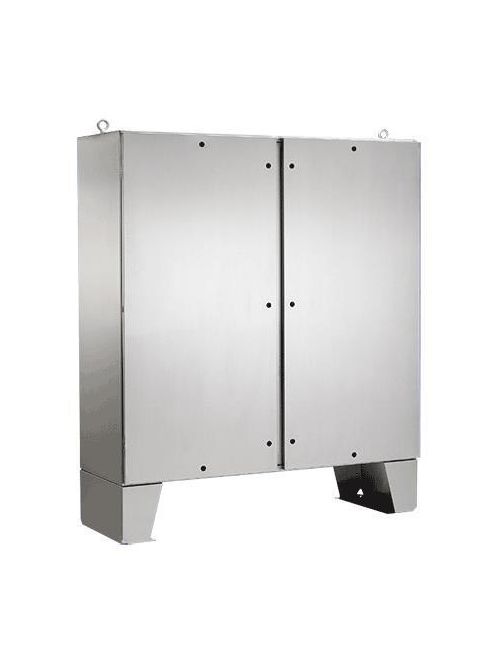

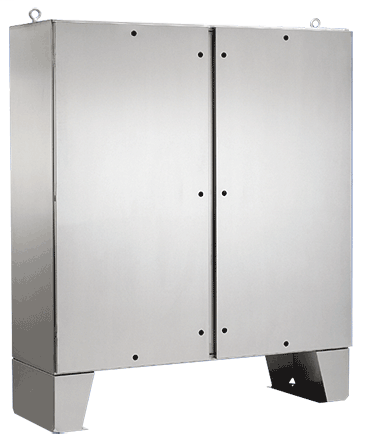

Hoffman A72H7218SSLPQT 72.06 x 72.06 x 18.06 Inch 12 Gauge 304 Stainless Steel NEMA 4X 2-Door Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$16,657.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72H7218SSLPQT
North Coast Part # 664329

Features

  • Floor-standing enclosure with 1/4 turn latching
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Black die-cast quarter-turn latches with slotted insert provided on three sides of each door
  • Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on 12-in.-high stainless steel floor stands
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Collar studs on inside of enclosure back for mounting optional panels
  • Removable centerpost for easy panel installation

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 72.06
  • Width (W) (millimetre): 1,830
  • Depth (D) (inch): 18.06
  • Depth (D) (millimetre): 459
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A72P72
  • Conductive Panel: A72P72G
  • Panel Size (D x E) (inch): 68.00 x 68.00
  • Panel Size (D x E) (millimetre): 1727 x 1727
  • Latch Quantity: 10
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness (gauge): 12
  • Body Thickness (millimetre): 2.8
  • Color: Unpainted
  • Door Thickness (gauge): 14
  • Door Thickness (millimetre): 1.98
  • Finish: Brushed #4
  • Size: 72.06x72.06x18.06 in

Related Products

Accessory

  • A72BP18G
  • A72BP18
  • AS050SS
  • G280416G051
  • LED24V15
  • A72P72
  • A72P72G
  • AWDH3024N4SS
  • AWDH2420N4SS
  • AWDH2416N4SS
  • APWK95NFNM
  • APWK2315NFSS
  • APWK138NFSS
  • APWK729NFSS
  • APWK53NFNM
  • APWK95NFSS
  • APWK715NFSS
  • AWDH1612N4SS
  • APWK711NFSS
  • AWDH1418N4SS
  • AWDH3624N4SS
  • AWDH2430N4SS
  • APWK1711NFSS
  • APWK116NFNM
  • APWK138NFNM
  • APWK53NFSS
  • APWK720NFSS
  • AWDH2016N4SS
  • APWK2919NFSS
  • ADPX4BSS
  • ADPX4CSS
  • GSKTKITS375
  • ADSTOPKSS6
  • ADPX4ASS
  • ALFSWD
  • ACSHELF1818SS
  • ACSHELF2424SS
  • ACSHELF1212SS
  • AHCI1DV
  • AHCI10E
  • AHCI5E
  • AHCI60R
  • AHCI240R
  • AHCI238S
  • LEDA1S35
  • LEDA2S35
  • APS3
  • APE050
  • AS050
  • APE100

Overview

GTiN 00783510137236
Width 72.06 in
Size 72.06x72.06x18.06 in
Type Free-Stand, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 459 mm
Height 72.06 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC: Type 3R, 4, 4X, 12,Number E61997,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Family Brand Name Hoffman
Number of Latches 10
Sub Brand Hoffman
Product UPC 78351013723
Finish Brushed
Body Thickness 2.8 mm
