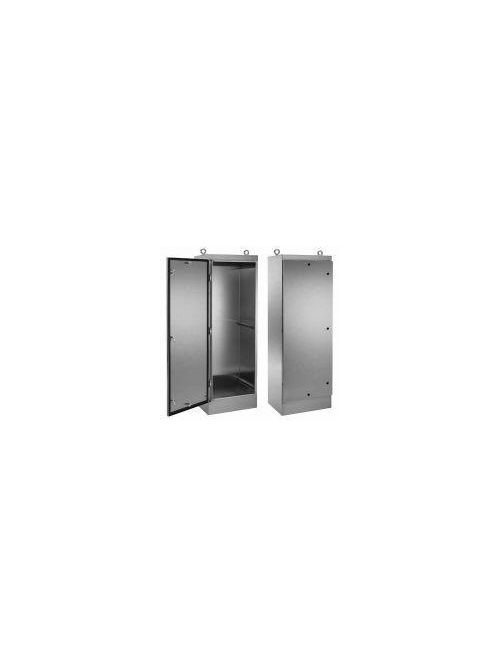

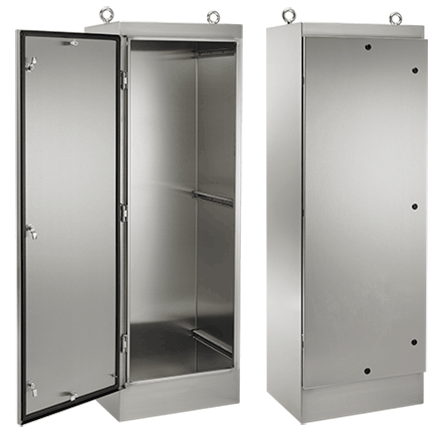

Hoffman A72HS3624SSLPQT 72.06 x 36.06 x 24.06 Inch 14 Gauge 304 Stainless Steel NEMA 4X 1-Door Free Stand Floor Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$8,561.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72HS3624SSLPQT
North Coast Part # 755160

Features

  • Freestanding enclosure with quarter turn latching
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Black die-cast quarter-turn latches with slotted insert provided on three sides of door
  • Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Internal accessory mounting channels welded horizontally to sides at top, bottom and center
  • High-impact plastic Data Pocket kit, attached with pressure-sensitive adhesive, is included with enclosure
  • Bonding provision on door; grounding stud on body

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 36.06
  • Width (W) (millimetre): 916
  • Depth (D) (inch): 24.06
  • Depth (D) (millimetre): 611
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A72P36F1
  • Conductive Panel: A72P36F1G
  • Panel Size (D x E) (inch): 60.00 x 32.00
  • Panel Size (D x E) (millimetre): 1524 x 813
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Size: 72.13x36.06x24.15 in

Related Products

Accessory

  • G280416G051
  • AS050SS
  • LED24V15
  • A60P36F1G
  • A72P36F2
  • A72P36F1G
  • A90P36F2G
  • A72SP36F3
  • A60P36F2G
  • A72P36F1
  • A72SMP20
  • A60P36F2
  • A60P36F1
  • A72P36F2G
  • A72SMP14
  • APS51618CN
  • APS1420CN
  • AWDH2420N4SS
  • APWK2315NFSS
  • APWK53NFNM
  • APWK715NFSS
  • APWK95NFNM
  • APWK2919NFSS
  • APWK95NFSS
  • APWK138NFSS
  • APWK1711NFSS
  • APWK729NFSS
  • AWDH3024N4SS
  • APWK711NFSS
  • APWK724NFSS
  • AWDH3624N4SS
  • AWDH2016N4SS
  • AWDH1612N4SS
  • AWDH2416N4SS
  • APWK720NFSS
  • APWK53NFSS
  • APWK138NFNM
  • APWK116NFNM
  • AWDH1418N4SS
  • ADSTOPKSS6
  • ALFSWD
  • ADPX4CSS
  • ADPX4BSS
  • ADPX4ASS
  • GSKTKITS375
  • ACSHELF2424SS
  • ACSHELF1212SS
  • ACSHELF1818SS
  • AHCI238S
  • AHCI60R
  • AHCI5E
  • AHCI240R
  • AHCI10E
  • AHCI1DV
  • LEDA2S35
  • LEDA1S35
  • APE050
  • A72FSHDPS
  • DMCKC
  • AS050
  • AS1032
  • P19RP7UA
  • P19RP2UA
  • A7236SOF19
  • P19RP8UA
  • P19RP11UA
  • P19RP1UA
  • P19RP10UA
  • APS9
  • APE100
  • P19RP4UA
  • P19RP5UA
  • P19RP6UA
  • P19RP12UA
  • P19RP9UA
  • ASM5
  • P19RP3UA

Overview

UPC 78351019167
Item Long Description This single-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
GTiN 00783510191672
Width 36.06 in
Size 72.13x36.06x24.15 in
Type Free-Stand, Stainless Steel
Material SS Type 304
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 611 mm
Height 72.06 in
Standard 12,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX,NEMA/EEMAC: Type 3R,Type 3R,UL508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 1.98 mm
