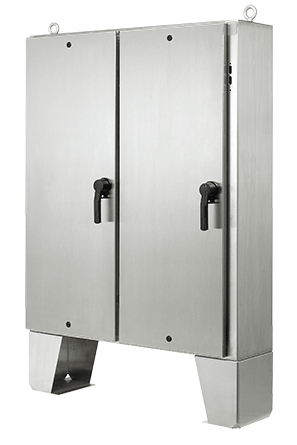

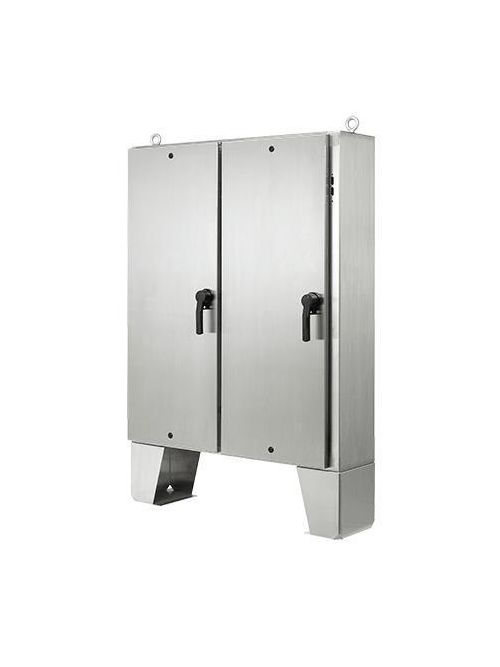

Hoffman A72HX7312SSLPQT Type 4X 2-Door Stainless Steel Disconnect Enclosure
$15,521.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72HX7312SSLPQT
North Coast Part # 760011

Features

  • Seams continuously welded and ground smooth
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Heavy-duty three-point latching mechanism on each door, operated by Hoffman's black die-cast PowerGlide™ padlocking handle. Black die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door.
  • Master door is far right-hand door on all enclosures
  • Master door handle provided with integral screwdriver defeater
  • Mechanical interlock activated by master door prevents slave door from being opened first. Doors can be closed in any order.
  • Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Bolt-on 15-in.-high stainless steel floor stands
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Collar studs on inside of enclosure back for optional mounting panels
  • Removable centerpost for easy panel installation
  • Bonding provisions on doors and ground studs on body
  • No interior stiffeners to obstruct component mounting
  • Provisions for mounting optional fluorescent light package
  • 14 gauge doors and 12 gauge body from Type 304 stainless steel
  • Flange trough collar on all four sides of door openings
  • Data pocket is high-impact plastic attached with pressure-sensitive adhesive
  • Preferred cutout on right-hand flange provides mounting for most disconnect operator

Notes

  • Purchase panels separately
  • All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. 1) ABB Controls flange-operated devices 2) Eaton Cutler-Hammer C361 devices 3) Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism 4) General Electric Type TDA devices (see next paragraph for option) 5) Schneider Square D Class 9422 devices (see next paragraph for option)
  • The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. 1) For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. 2) For General Electric devices, order catalog number TDSR extended length drive rod 3) For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.

Accessories

  • Electric Heater
  • Electrical Interlocks
  • Panelite™ Enclosure Lights Overview
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A4S2
  • Model Code: 14544
  • Ship Wt. Std. Pkg. (lbs): 650.0
  • Interchangeable: No
  • Catalog Number: A72HX7312SSLPQT
  • A in.: 72.06
  • B in.: 73.31
  • C in.: 12.06
  • Panel Size D x E in.: 68.00 x 68.00
  • Conductive Panel: A72P72G
  • Panel: A72P72
  • No. of Quarter-turn Latches: 4
  • Standards: UL508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC: Type 3R, 4, 4X, 12 || IEC 60529, IP66 || Catalog weights & dimensions are careful estimates but not guaranteed.

Overview

UPC 78351014544
GTiN 00783510145446
Width 73.31 in
Size 72.06x73.31x12.06 in
Type General Purpose Stainless Steel Two-Door Floor-Mount Disconnect Enclosures, Type 4X
Material STAINLESS STEEL
Applications This disconnect enclosure is designed to house electronic controls and components. It provides protection from noncorrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the food and beverage, packaging, water, petroleum and chemical processing industries. Designed to house the most popular disconnect switches and circuit breakers.
Depth 12.06 in
Height 72.06 in
Standard UL508A Listed,12,4,4X,CUL Listed Per CSA C22.2 No. 94,IEC 60529,NEMA/EEMAC: Type 3R,File No. E61997,IP66,Type 3R,Meets NEMA Type 3RX Requirements
Family Brand Name Hoffman
Sub Brand Hoffman
