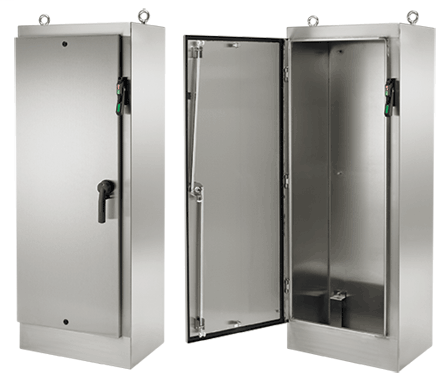

Hoffman A72HXS3924SSLPQT 72.06 x 38.5 x 24.06 Inch 14 Gauge 304 Stainless Steel NEMA 4X 1-Door Free Stand Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9,589.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72HXS3924SSLPQT
North Coast Part # 666919

Features

  • Disconnect enabled enclosure is designed to house electronic controls
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle; back die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
  • Black Die-Cast PowerGlide handle has integral screwdriver defeater
  • Collar studs on inside of enclosure back for optional mounting panels
  • Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Bonding provision on door; grounding stud on body

Specifications

  • Height (H) (inch): 72.06
  • Height (H) (millimetre): 1,830
  • Width (W) (inch): 38.5
  • Width (W) (millimetre): 978
  • Depth (D) (inch): 24.06
  • Depth (D) (millimetre): 611
  • Protection Rating: NEMA Type 4X
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel: A72PM40
  • Conductive Panel: A72PM40G
  • Panel Size (D x E) (inch): 60.00 x 33.75
  • Panel Size (D x E) (millimetre): 1524 x 857
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Size: 72.13x38.50x24.15 in

Related Products

Accessory

  • LED24V15
  • G280416G051
  • AS050SS
  • A72PM40
  • A72PM40G
  • APWK720NFSS
  • AWDH2420N4SS
  • APWK138NFSS
  • APWK53NFSS
  • APWK53NFNM
  • AWDH2016N4SS
  • APWK2315NFSS
  • AWDH1612N4SS
  • APWK729NFSS
  • APWK138NFNM
  • AWDH3624N4SS
  • APWK1711NFSS
  • AWDH2416N4SS
  • APWK715NFSS
  • AWDH3024N4SS
  • APWK2919NFSS
  • APWK116NFNM
  • APWK95NFNM
  • AWDH1418N4SS
  • AWDH2430N4SS
  • APWK95NFSS
  • APWK711NFSS
  • ADPX4BSS
  • ADSTOPKSS6
  • ADPX4CSS
  • APCITE
  • APCSDA
  • UBP
  • APCABVA
  • APCCHVA
  • APCGETDA
  • ADPX4ASS
  • ALFSWD
  • GSKTKITS375
  • GP168
  • DLGP610
  • GP206
  • GP208
  • DLGP618
  • AGP1218
  • ACSHELF1818SS
  • GP2412
  • GP248
  • AGP1618
  • AGP618
  • ACSHELF1212SS
  • ACSHELF2424SS
  • AHCI1DV
  • AHCI5E
  • AHCI238S
  • AHCI60R
  • AHCI240R
  • AHCI10E
  • LEDA2S35
  • LEDA1S35
  • APE050
  • APE100
  • APS9
  • AS050

Overview

UPC 78351019172
Item Long Description This single door, stainless steel, disconnect enabled enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
GTiN 00783510191726
Width 38.5 in
Size 72.13x38.50x24.15 in
Type Disconnect, Free-Stand
Material SS Type 304
Applications Arc Flash Safety; Controls and Drives; Corrosive Environments
Depth 611 mm
Height 72.06 in
Standard 12,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX,NEMA/EEMAC: Type 3R,Type 3R,UL508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 1.98 mm
