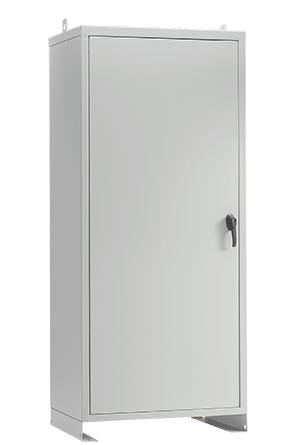

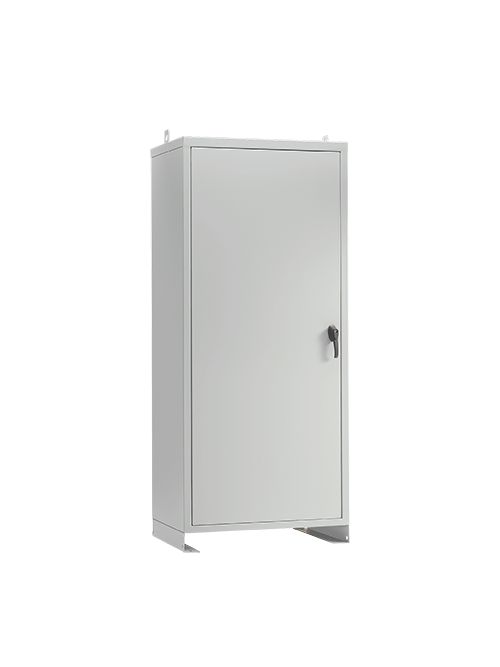

Hoffman A72N3618FSLP 72 x 36 x 18 Inch 14 Gauge Steel NEMA 1 1-Door Free Stand Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,967.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72N3618FSLP
North Coast Part # 157933

Features

  • Enclosure back is 12 gauge for increased stiffness
  • 4-in. high 10 gauge steel integral lifting base
  • Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
  • Sturdy 7 gauge lifting tabs
  • Flush doors
  • 3-point latch with heavy-duty handle
  • Padlock provision in handle
  • Predrilled holes in lifting base provide bolt-down capability
  • Easily reversible doors on single-door models
  • Overlapping doors with no center post on two-door models

Specifications

  • Height (H) (inch): 72
  • Height (H) (millimetre): 1,829
  • Width (W) (inch): 36
  • Width (W) (millimetre): 914
  • Depth (D) (inch): 18
  • Depth (D) (millimetre): 457
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Conductive Panel: A61P32NG
  • Panel: A61P32N
  • Panel Size (D) (inch): 61.16
  • Panel Size (D) (millimetre): 1,553
  • Panel Size (E) (inch): 32
  • Panel Size (E) (millimetre): 813
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 72.00x36.00x18.00 in

Related Products

Accessory

  • AS050
  • LED24V15

Overview

UPC 78351013734
Item Long Description Free-Stand Type 1 Enclosures are an economical way to protect equipment and employees in applications that do not require extensive environmental protection.
GTiN 00783510137342
Finish Powder Coated
Width 36 in
Size 72.00x36.00x18.00 in
Color Gray
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 457 mm
Height 72 in
Standard CUL Listed Per CSA C22.2 No. 40,File No. E61997,IEC 60529 IP30,NEMA/EEMAC Type 1,Type 1,UL508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 mm
