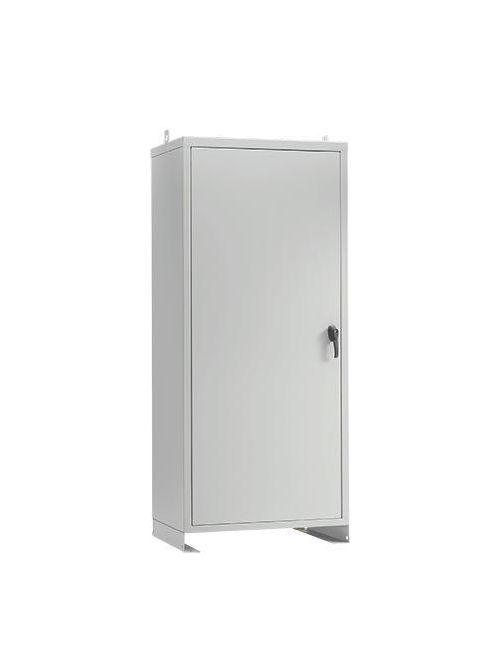

LRG TYPE 1 ENC 2 DOOR
Product image thumbnail 0
Product image thumbnail 1
$3,057.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72N7224FSLP
North Coast Part # 605519

Features

  • 14 gauge steel (rear of enclosure is welded 12 gauge for increased stiffness)
  • 4-in. high 10 gauge steel integral lifting base
  • Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
  • Sturdy 7 gauge lifting tabs
  • Flush doors
  • 3-point latch with heavy-duty handle
  • Padlock provision in handle
  • Predrilled holes in lifting base provide bolt-down capability
  • Easily reversible doors on single-door models
  • Overlapping doors with no center post on two-door models
  • Bonding provision on each door
  • Studs included for mounting optional panels on threaded bolts
  • Optional rack angles mount to top and bottom of front flanges
  • Removable back covers

Notes

  • Purchase panels separately.

Accessories

  • Rack-Mount Steel Shelf
  • Rack Angles
  • Panels for Free-Stand Type 1 Large Two-Door Enclosures

Specifications

  • Bulletin Number: A38
  • Material: Steel
  • Model Code: 13885
  • Ship Wt. Std. Pkg. (lbs): 597.0
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: A72N7224FSLP
  • A in.: 72
  • B in.: 72
  • C in.: 24
  • Description: Two-Door Enclosures
  • Conductive Panel: A61P68NG
  • Panel: A61P68N
  • Panel Size D in.: 61.16
  • Panel Size E in.: 68.00
  • Standards: UL508A Listed; Type 1; File No. E61997 || cUL Listed per CSA C22.2 No. 40; Type 1; File No. E61997 || NEMA/EEMAC Type 1 || IEC 60529 IP30

Overview

UPC 78351013885
GTiN 00783510138851
Finish RAL 7035
Width 72 in
Size 72.00x72.00x24.00 in
Color Gray
Type Free-Stand, Mild Steel
Material Steel
Applications Controls and Drives; Power Distribution
Depth 24 in
Height 72 in
Standard CUL Listed Per CSA C22.2 No. 40,File No. E61997,IEC 60529 IP30,NEMA/EEMAC Type 1,Type 1,UL508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
