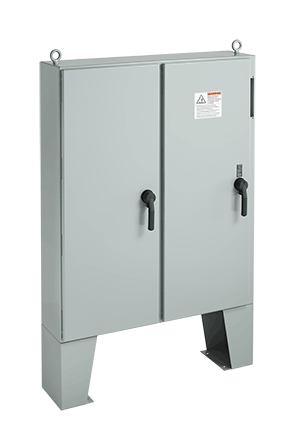

Hoffman A72X7318LPFTCG 72.12 x 73.75 x 18.12 Inch Gray Steel NEMA 12 2-Door Disconnect Enclosure

Features

• .121-in. steel
• Seams continuously welded and ground smooth
• Body stiffeners in larger enclosures for extra rigidity
• Body flange trough excludes liquids and contaminants
• Removable centerposts permit easy panel installation
• Concealed, easy-to-remove hinges
• Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
• Heavy-duty lifting eyes anchor into reinforced top
• Data pocket is high impact thermoplastic
• 15-in. floor stands are welded to enclosure
• Provisions for mounting lights
• Oil-resistant door gasket
• Panel supports
• Collar studs provided for mounting optional panels
• Master door is right-hand door on X enclosures and left-hand door on CPX enclosures
• Mechanical interlock operated by master door prevents slave door from being opened first. Doors can be closed in any order.
• Includes door hardware

Notes

• Purchase panels separately.
• All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCLPA, purchased separately. • ABB Controls flange-operated devices • Eaton Cutler-Hammer C361 devices • Eaton Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism (see footnote below) • General Electric Type TDA devices (see footnote below) • Schneider Square D Class 9422 devices (see footnote below)
• The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Eaton Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2 connecting rod. • For General Electric devices, order catalog number TDSR extended length drive rod • For Schneider Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods.

Accessories

• Blank Adapter Plates, Mild Steel
• InterSafe™ Data Interface Ports, Type 4/4X/12
• Operator Adapters for Universal Cutouts
• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
• Steel and Stainless Steel Window Kits

Specifications

• Bulletin Number: A21
• Material: Steel
• Model Code: 25668
• Ship Wt. Std. Pkg. (lbs): 808.0
• Interchangeable: False
• Catalog Number: A72X7318LPFTCG
• A in.: 72.12
• B in.: 73.75
• C in.: 18.12
• Panel Size D x E in.: 68.00 x 68.00
• Conductive Panel: A72P72G
• Panel: A72P72
• Interior Finish: Gray
• Stiffener Position S in.: 24.00
• Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55
