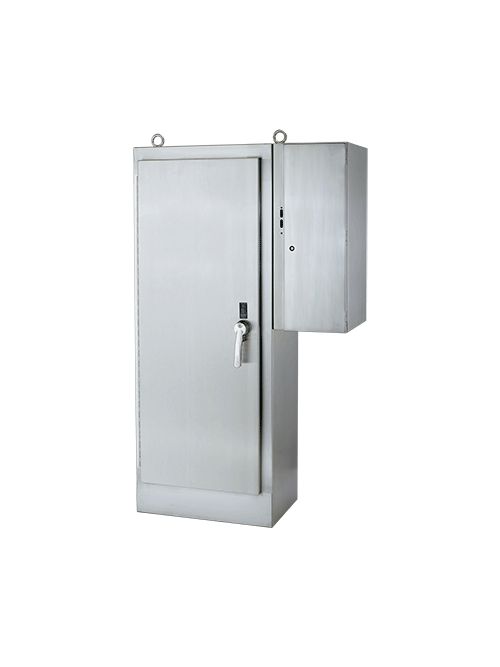

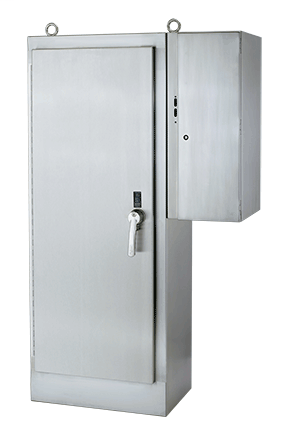

NVENT HOF A72XD6618SSFTCLP 72x66x18
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$30,463.64/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72XD6618SSFTCLP
North Coast Part # 1352595

Features

  • Package includes a main enclosure and a Sequestr box.
  • Main enclosure 12 gauge Type 304 stainless steel
  • Sequestr enclosure is 14 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Interlocks doors of main control cabinet when disconnect switch is powered ON
  • Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first
  • Provision for pass-through power into the main enclosure
  • Preferred Disconnect cutout
  • Quarter-turn, screwdriver slot latch on Sequestr Enclosure
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors

Specifications

  • Height (H) (inch): 72.12
  • Height (H) (millimetre): 1,832
  • Width (W) (inch): 66.5
  • Width (W) (millimetre): 1,689
  • Depth (D) (inch): 18.12
  • Depth (D) (millimetre): 460
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel: A72PM66
  • Conductive Panel: A72PM66G
  • Panel Size (inch): 60.00 x 60.00
  • Panel Size (millimetre): 1524 x 1524
  • Modification Services: Yes
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Sub Brand: Sequestr
  • Size: 72.12 x 66.5 x 18.12 in

Related Products

Accessory

  • ATBP3060
  • ATBP100
  • ATBP200
  • A31P12G
  • APCCHVA
  • APCGETDA
  • APCSDA
  • APCABVA
  • APCITE
  • A72PM66
  • A72PM66G
  • AFK2418SS
  • AFK1818SS6
  • AFK1218SS6
  • AFK0618SS
  • AFK1218SS
  • AFK2418SS6
  • AFK1818SS
  • AFK0618SS6
  • APWK2315NFSS
  • APWK53NFSS
  • APWK724NFSS
  • APWK138NFNM
  • APWK95NFSS
  • APWK116NFNM
  • APWK95NFNM
  • APWK711NFSS
  • APWK729NFSS
  • APWK1711NFSS
  • APWK2919NFSS
  • APWK715NFSS
  • APWK53NFNM
  • APWK138NFSS
  • APWK720NFSS
  • AWDH3624N4SS
  • AWDH1418N4SS
  • AWDH2420N4SS
  • AWDH2430N4SS
  • AWDH2416N4SS
  • AWDH2016N4SS
  • AWDH1612N4SS
  • AWDH3024N4SS
  • IW4000
  • IW3000
  • HDP5ETHSS
  • HGF5ETHETHSS
  • HDP5ETHETHSS
  • HDP5CNSS
  • HGF5ETHSS
  • HGF5USBUSBSS
  • HGF5CNSS
  • HDP5USBUSBSS
  • ACSHELF1818SS
  • ACSHELF1212SS
  • ADPX4ASS
  • ADPX4BSS
  • ADSTOPKSS6
  • ADPX4CSS
  • ALFSWD
  • LEDA2S35
  • LEDA1S35
  • LED24V15
  • GP208SS6
  • GP248SS6
  • GP126SS6
  • GP168SS6
  • GP206SS6
  • GP2412SS6
  • GP128SS6
  • GP166SS6
  • WSASLKSS
  • WSFSLKSS
  • GSKTKITS375

Overview

UPC 78351027942
Item Long Description The Stainless Steel Sequestr External Disconnect Enclosure package helps mitigate arc flash occurrences when working on interior components by isolating incoming power from the main enclosure. Manufactured from 304 stainless steel, it provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. A package includes a main enclosure and a Sequestr box. Sequestr boxes can be ordered separately to retrofit existing enclosures. The disconnect switch and fuse block/circuit breaker are mounted in the external enclosures, with terminal connections to bring power to the main enclosure.
GTiN 00783510279424
Width 66-1/2 in
Material Stainless Steel
Depth 18.12 in
Height 72.12 in
Family Brand Name Hoffman
Finish #4 Brushed
Size 72.12 x 66.5 x 18.12 in
Type Preferred Cutout, Two Door
Applications For Arc Flash Safety, Controls and Drives, Corrosive Environments
Gauge 14
Cover Type Quarter-Turn, Slotted Latch
Sub Brand Sequestr
Thickness 1.98 mm
