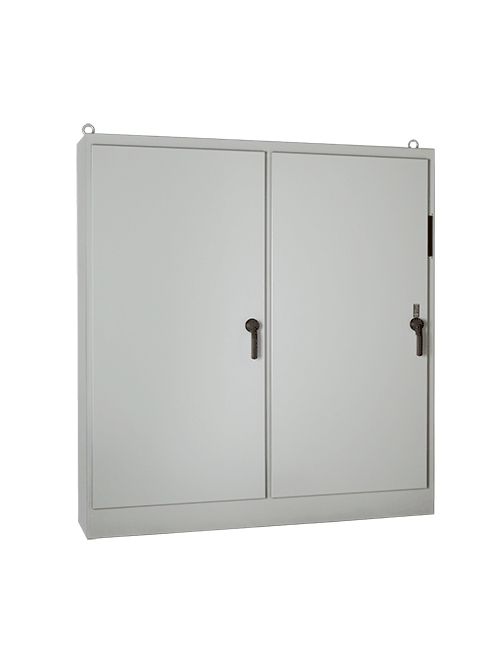

Hoffman A72XM3EQ18FTC 72.12 x 99.5 x 18.12 Inch White Steel NEMA 12 3-Door Free Stand Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
$9,401.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A72XM3EQ18FTC
North Coast Part # 598030

Features

  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
  • Panel supports
  • Data pocket is high-impact thermoplastic
  • Oil-resistant gasket

Specifications

  • Height (H): 1,832 millimetre
  • Width (W): 2,559 millimetre
  • Depth (D): 460 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Large Painted Panel: A72PM66
  • Large Conductive Panel: A72PM66G
  • Large Panel Quantity: 1
  • Large Panel Size: 1524 x 1524 millimetre
  • Small Painted Panel: A72PM34
  • Small Conductive Panel: A72PM34G
  • Small Panel Size: 1524 x 705 millimetre
  • With or Without Panel: With
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Finish: Powder Coated
  • Thickness (T): 3.04 millimetre

Related Products

Accessory

  • A72BP18G
  • A72BP18
  • A72PM34G
  • A72PM66G
  • A72PM66
  • A72PM34
  • SITES
  • ABS
  • GEV
  • SQDC
  • ABL
  • GEC
  • WAMT
  • SITEL
  • ABBSV
  • SQDV
  • ECHV
  • ABBSC
  • WAMTF
  • ABF
  • ECHC
  • ABBLC
  • UBP
  • GSKTKITS375
  • LED24V15
  • LEDA2S35
  • LEDA1S35
  • ALFSWD
  • ADPX4A
  • ADPX4ALG
  • ADPX4B
  • ADPX4CLG
  • ADPX4C
  • ADPX4BLG
  • ALGDSTOP2
  • AWDH1612N4
  • AWDH2016N4
  • APWK3024H
  • APWK133NF
  • AWDH2430N4
  • APWK2919NF
  • APWK3523NF
  • AWDH3024N4
  • AWDH3624N4
  • APWK1212H
  • APWK138NF
  • APWK2420H
  • APWK95NF
  • APWK53NF
  • APWK1612H
  • AWDH2420N4
  • APWK1711NF
  • APWK2020H
  • APWK2315NF
  • APWK175NF
  • AWDH2416N4
  • AWDH1418N4
  • APWK2016H
  • AA35SHLF2424
  • AA61SHLF1818
  • AASHLF2424
  • AA35SHLF1818
  • AA61SHLF2424
  • AA35SHLF1218
  • AASHLF1218
  • AASHLF1818
  • AA61SHLF1218
  • DLGP610
  • DLGP618
  • AGP1218
  • AGP618
  • AGP1618
  • AFK1218
  • AFK0618
  • AEK230
  • AEK460
  • AEK115

Overview

UPC 78351020839
GTiN 00783510208394
Finish Powder Coated
Width 100.75 in
Size 72.12x100.75x18.12 in
Type Disconnect, Free-Stand
Material 20839
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 18.12 in
Height 72.12 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 3.04 Millimetre mm
