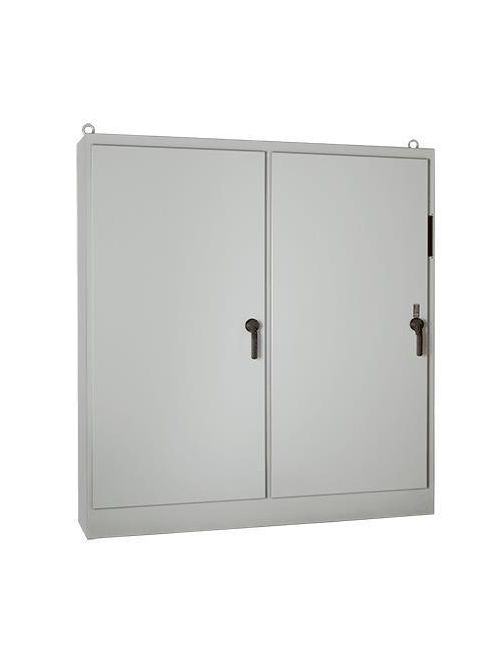

Hoffman A72XM6618FTCLP 72.12 x 66.5 x 18.12 Inch Steel NEMA 12 2-Door Disconnect Enclosure

$5,177.27/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

.121-in. steel
Seams continuously welded and ground smooth
Body stiffeners in larger enclosures for extra rigidity
Body flange trough excludes liquids and contaminants
Heavy-duty lifting eyes anchor into reinforced top
Removable centerposts permit easy panel installation
Concealed, easy-to-remove hinges
Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
Panel supports
Data pocket is high-impact thermoplastic
Oil-resistant gasket
Master door is far right-hand door on all enclosures
Defeater on primary door requires a screwdriver to open
Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
Models available with panel included or panel sold separately
FTC models include removable painted 10 gauge steel panels which mount on collar studs
Includes door hardware

All 24.12-in. (613-mm) and deeper enclosures using short connecting rods in the following models require a Hoffman platform assembly, catalog number ADSCPA, purchased separately. • ABB Controls flange-operated devices • Cutler-Hammer C361 devices • Cutler-Hammer C371 mechanisms which use C371E, F, G, K operating mechanism • General Electric Type TDA devices (see next paragraph for option) • Square D Class 9422 devices (see next paragraph for option)
The platform assembly can be omitted if long connecting rods are ordered in place of short connecting rods. • For Cutler-Hammer operating mechanisms C371E and C371F order catalog number C371CS1 connecting rod. For C371G and C371K order catalog number C371CS2. • For General Electric devices, order catalog number TDSR extended length drive rod • For Square D devices, order catalog number 9422-R2 extra long operating rod(s). Some devices require two rods. Consult factory for space occupied on panel when platform is used.
Enclosures with panel include a painted panel. Order conductive panels separately.

Bulletin Number: Steel
Material: 13595
Model Code: 677.0
Ship Wt. Std. Pkg. (lbs): No
Interchangeable: Steel/paint
Catalog Number: A72XM6618FTCLP
A in.: 72.12
B in.: 66.5
C in.: 18.12
Description: Two-Door
Interior Finish: White
With or Without Panel: Without
Stiffener Locations in.: 21.00
Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55Catalog weights & dimensions are careful estimates but not guaranteed.

UPC	78351013595
GTiN	00783510135959
Finish	White
Width	66.5 in
Size	72.12x66.50x18.12 in
Type	Heavy-Duty Free-Stand Disconnect Enclosure, Type 12
Material	13595
Applications	Simple, heavy-duty and cost-effective, this disconnect enclosure can be ordered with one to six doors to fit a range of applications.
Depth	18.12 in
Height	72.12 in
Standard	IEC 60529, IP55Catalog Weights & Dimensions Are Careful Estimates But Not Guaranteed.,CSA File No. 42186: Type 12,NEMA/EEMAC Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,UL 508A Listed; Type 12; File No. E61997
Family Brand Name	Hoffman
Sub Brand	Hoffman
