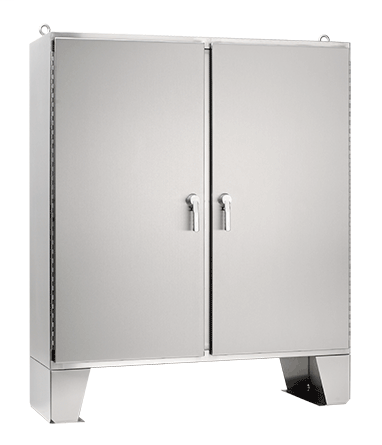

Hoffman A74H6018SS6LP3PT 74.06 x 60.06 x 18.06 Inch 12 Gauge 316L Stainless Steel NEMA 4X 2-Door Floor Mount Enclosure
$18,175.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A74H6018SS6LP3PT
North Coast Part # 881020

Features

  • Manufactured from 12 gauge Type 304 or 316L stainless steel
  • Backs are 10 or 12 gauge stainless steel with x-form stiffeners
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Removable centerpost for easy panel installation
  • Collar studs provided for mounting optional panels
  • Panel supports included
  • Heavy-duty lifting eyes are Type 316L stainless steel
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handles
  • Body flange trough collar excludes liquids and contaminants
  • Heavy-duty stainless steel continuous hinges support each door
  • Bonding provision on doors; grounding studs on body
  • Accessory mounting channel provided in enclosure top
  • Data pocket is high-impact thermoplastic
  • 12-in. (305-mm) removable floor stands are bolted to enclosure
  • Seamless foam-in-place one-piece gasket provides oil-tight and dust-tight seal against contaminants
  • External hardware manufactured of Type 316 stainless steel

Notes

  • Purchase panels separately.

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Electrical Interlocks
  • Panelite Enclosure Lights Overview
  • Panel Support Kit

Specifications

  • Bulletin Number: A4S3
  • Material: Stainless Steel
  • Model Code: 26221
  • Ship Wt. Std. Pkg. (lbs): 572.0
  • Interchangeable: False
  • Catalog Number: A74H6018SS6LP3PT
  • A in.: 74.06
  • B in.: 60.06
  • C in.: 18.06
  • Panel Size D x E in.: 68.00 x 56.00
  • Conductive Panel: A72P60G
  • Panel: A72P60
  • Stainless Steel Type: 316L
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Categories

Overview

UPC 78351026221
GTiN 00783510262211
Width 60.06 in
Size 74.062 x60.062 x18.062 in
Type Free-Stand, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 18.06 in
Height 74.06 in
Standard 12,13,3R,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA Type 3,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
